HEATING / AIR CONDITIONING  REFRIGERANT LINE  INSTALLATION

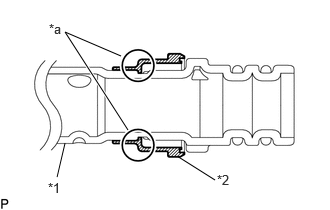

1.333,1.354 0.677,0.333 0.677,0.333 1.26,0.583 true 0.594,1.844 0.677,1.49 false 2.24,1.875 1.844,1.625 false 0.5,1.875 0.802,2.104 0.302,0.229 10 false *1 2.26,1.792 2.563,2 0.302,0.208 10 false *2 0.51,0.219 0.781,0.5 0.271,0.281 10 false *a

*1	Suction Hose Sub-assembly
*2	Piping Clamp
*a	Groove

Install a new piping clamp to the suction hose sub-assembly.

NOTICE:

·

Securely engage the piping clamp to the groove of the suction hose sub-assembly.

·

Do not open the piping clamp more than the diameter of the suction hose sub-assembly when installing it.

·

Do not install the piping clamp with the large diameter section facing the wrong direction.

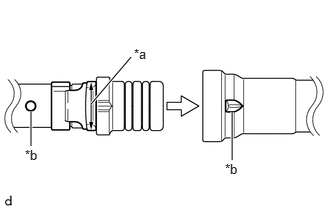

0.323,1.521 0.323,1.156 true 1.365,0.594 0.948,1.083 true 2.417,1.667 2.417,1.167 true 1.396,0.479 1.646,0.667 0.25,0.188 10 false *a 0.26,1.531 0.573,1.688 0.313,0.156 10 false *b 2.344,1.677 2.656,1.833 0.313,0.156 10 false *b

*a	Large Diameter Section of Piping Clamp
*b	Alignment Mark

Align the alignment marks and connect the suction pipe sub-assembly and suction hose sub-assembly.

NOTICE:

Connect the parts by holding the tubes, not the piping clamp.

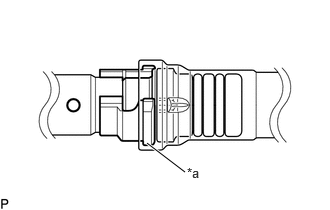

1.531,1.49 1.927,1.792 true 1.948,1.719 2.26,1.958 0.313,0.24 10 false *a

*a	Large Diameter Section of Piping Clamp

Securely insert the piping clamp to the point where the large diameter section of the piping clamp is covered by the suction pipe sub-assembly.

NOTICE:

·

When inserting, make sure that a click sound is heard.

·

Check that the suction hose sub-assembly is securely connected by pulling it.
