RM38T0EC _58 Vehicle Interior _112288 LIGHTING (INT) _0501080 FRONT DOOR COURTESY SWITCH A

LIGHTING (INT) FRONT DOOR COURTESY SWITCH INSTALLATION

CAUTION / NOTICE / HINT

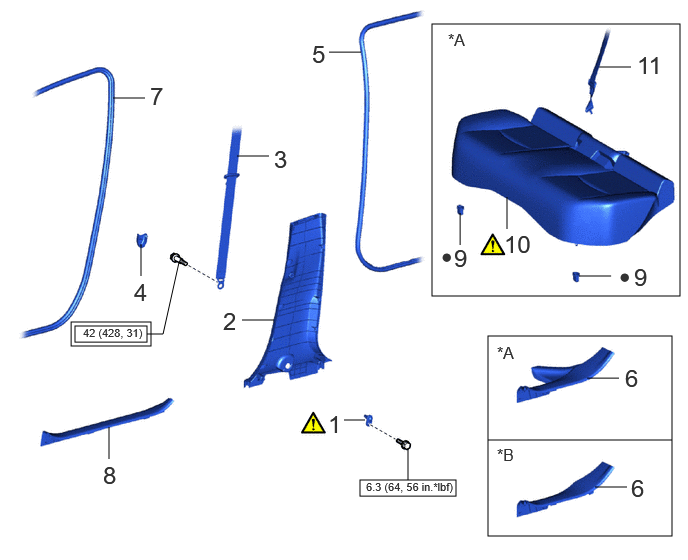

COMPONENTS (INSTALLATION)

4.5,0.25 7.083,3.083 2.583,2.833 5.083,3.5 7,5.583 1.917,2.083 3.75,5 4.75,5.167 1,0.167 0.781,3.396 1.531,3.563 0.75,0.167 0.74,3.354 1.573,3.604 0.833,0.25 2.521,3.333 2.854,3.333 false 5.083,4.583 7,4.583 false 6.24,0.698 6.573,0.698 false 3.583,4.375 3.802,4.375 false 5.281,2.052 5.281,2.385 false 6.031,2.875 6.365,2.875 false 4.792,2.219 4.792,2.552 false 6.115,3.938 6.448,3.938 false 6.198,5.073 6.531,5.073 false 3.427,0.542 3.76,0.542 false 2.469,1.625 2.802,1.625 false 1.469,2.542 1.469,2.875 false 1.177,1.021 1.51,1.021 false 1.135,4.448 1.135,4.781 false 4.25,5 4.25,4.667 false 1.531,3.479 1.698,3.479 1.698,3.479 1.865,2.729 false 6.635,0.531 7,0.896 0.365,0.365 18 false 11 4.667,0.313 5.042,0.552 0.375,0.24 12 false *A 5.177,3.573 5.552,3.813 0.375,0.24 12 false *A 5.177,4.635 5.552,4.875 0.375,0.24 12 false *B 5.25,2.396 5.688,2.771 0.438,0.375 18 false 10 4.729,2.542 5.083,2.896 0.354,0.354 18 false 9 4.594,2.542 4.781,2.781 0.188,0.24 14 false ● 6.448,2.75 6.635,2.99 0.188,0.24 14 false ● 6.604,2.74 6.979,3.083 0.375,0.344 18 false 9 1.073,4.802 1.354,5.156 0.281,0.354 18 false 8 1.563,0.854 1.844,1.208 0.281,0.354 18 false 7 6.51,3.792 6.792,4.146 0.281,0.354 18 false 6 6.573,4.938 6.854,5.292 0.281,0.354 18 false 6 3.25,0.417 3.531,0.771 0.281,0.354 18 false 5 1.396,2.896 1.677,3.25 0.281,0.354 18 false 4 2.854,1.51 3.271,1.885 0.417,0.375 18 false 3 2.323,3.198 2.74,3.573 0.417,0.375 18 false 2 3.417,4.271 3.833,4.646 0.417,0.375 18 false 1 3.813,5 4.802,5.188 0.99,0.188 8 false 6.3 (64, 56 in.*lbf) 0.865,3.396 1.677,3.604 0.813,0.208 8 false 42 (428, 31)

Procedure		Part Name Code
1	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY	84233	(202307,999999,_58,_112288,_0501080,RM100000002BHD2_05_0008,)	-	-
2	CENTER PILLAR LOWER GARNISH	62414A	-	-	-
3	FRONT SEAT OUTER BELT ASSEMBLY	73220	-	-	-
4	LAP BELT OUTER ANCHOR COVER	73233	-	-	-
5	REAR DOOR OPENING TRIM WEATHERSTRIP	62332A	-	-	-
6	REAR DOOR SCUFF PLATE	67918A	-	-	-
7	FRONT DOOR OPENING TRIM WEATHERSTRIP	62312B	-	-	-
8	FRONT DOOR SCUFF PLATE	67914B	-	-	-
9	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
10	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	(202307,999999,_58,_112288,_0501080,RM100000002BHD2_05_0007,)	-	-
11	REAR CENTER SEAT OUTER BELT ASSEMBLY	73350C	-	-	-

*A	for Gasoline Model	*B	for HEV Model
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque
●	Non-reusable part	-	-

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

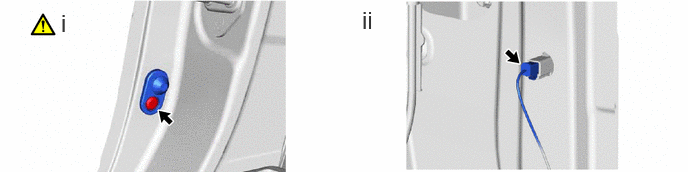

Hide Display 84233 1.INSTALL FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

0.635,0.094 0.917,0.448 0.281,0.354 18 false i 3.771,0.063 4.052,0.417 0.281,0.354 18 false ii

Using a T30 "TORX" socket wrench, install the front door courtesy light switch assembly with the bolt.

Torque:: 6.3 N*m (64 kgf*cm, 56 in.*lbf)

ii.

Connect the connector.

Hide Display 62414A 2.INSTALL CENTER PILLAR LOWER GARNISH

Hide Display 73220 3.CONNECT FRONT SEAT OUTER BELT ASSEMBLY

Hide Display 73233 4.INSTALL LAP BELT OUTER ANCHOR COVER

Hide Display 62332A 5.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP

Hide Display 67918A 6.INSTALL REAR DOOR SCUFF PLATE

Hide Display 62312B 7.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP

Hide Display 67914B 8.INSTALL FRONT DOOR SCUFF PLATE

Hide Display 72693 9.INSTALL REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

Hide Display 10.INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

Click here(

202307,999999,_58,_114203,_0509293,RM100000002BZY2_01_0021,)

Hide Display 73350C 11.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)
