RM38T0EC _58 Vehicle Interior _112288 LIGHTING (INT) _0501080 FRONT DOOR COURTESY SWITCH A

LIGHTING (INT)  FRONT DOOR COURTESY SWITCH  REMOVAL


CAUTION / NOTICE / HINT

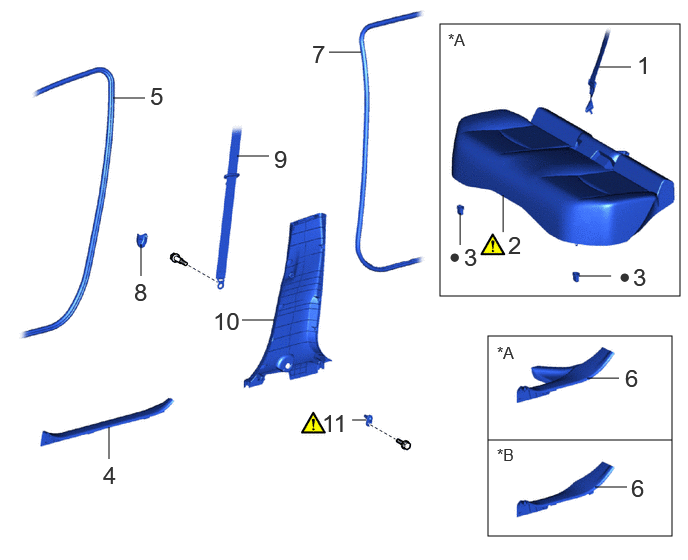

COMPONENTS (REMOVAL)
E460411N05
4.583,0.25 7.083,3.083 2.5,2.833 5.083,3.5 7,5.583 1.917,2.083 2.521,3.333 2.854,3.333 false 5.083,4.583 7,4.583 false 6.24,0.698 6.573,0.698 false 3.667,4.375 3.813,4.375 false 5.24,2.031 5.24,2.417 false 6.031,2.875 6.365,2.875 false 4.792,2.219 4.792,2.552 false 6.115,3.938 6.448,3.938 false 6.198,5.073 6.531,5.073 false 3.427,0.542 3.76,0.542 false 2.469,1.625 2.802,1.625 false 1.469,2.542 1.469,2.875 false 1.177,1.021 1.51,1.021 false 1.135,4.448 1.135,4.781 false 6.635,0.531 6.917,0.885 0.281,0.354 18 false 1 4.667,0.313 5.042,0.552 0.375,0.24 12 false *A 5.177,3.573 5.552,3.813 0.375,0.24 12 false *A 5.177,4.635 5.552,4.875 0.375,0.24 12 false *B 5.292,2.406 5.573,2.76 0.281,0.354 18 false 2 4.833,2.531 5.115,2.885 0.281,0.354 18 false 3 4.677,2.542 4.865,2.781 0.188,0.24 14 false ● 6.448,2.75 6.635,2.99 0.188,0.24 14 false ● 6.594,2.74 6.875,3.094 0.281,0.354 18 false 3 1.073,4.802 1.354,5.156 0.281,0.354 18 false 4 1.563,0.854 1.844,1.208 0.281,0.354 18 false 5 6.51,3.792 6.792,4.146 0.281,0.354 18 false 6 6.573,4.938 6.854,5.292 0.281,0.354 18 false 6 3.25,0.417 3.531,0.771 0.281,0.354 18 false 7 1.396,2.896 1.677,3.25 0.281,0.354 18 false 8 2.854,1.51 3.271,1.885 0.417,0.375 18 false 9 2.219,3.198 2.635,3.573 0.417,0.375 18 false 10 3.354,4.26 3.771,4.635 0.417,0.375 18 false 11

Procedure Part Name Code
Z101186

Z101188

Z101187

1 REAR CENTER SEAT OUTER BELT ASSEMBLY 73350C - - -
2 BENCH TYPE REAR SEAT CUSHION ASSEMBLY - (Click here) - -
3 REAR SEAT CUSHION LOCK HOOK 72693 - - -
4 FRONT DOOR SCUFF PLATE 67914B - - -
5 FRONT DOOR OPENING TRIM WEATHERSTRIP 62312B - - -
6 REAR DOOR SCUFF PLATE 67918A - - -
7 REAR DOOR OPENING TRIM WEATHERSTRIP 62332A - - -
8 LAP BELT OUTER ANCHOR COVER 73233 - - -
9 FRONT SEAT OUTER BELT ASSEMBLY 73220 - - -
10 CENTER PILLAR LOWER GARNISH 62414A - - -
11 FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY 84233 (Click here) - -

*A for Gasoline Model *B for HEV Model
● Non-reusable part - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 73350C 1.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY>REMOVAL

Hide 2.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

Z101186

Click here(Click here)

Hide 72693 3.REMOVE REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY>REMOVAL

Hide 84233 11.REMOVE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

a.

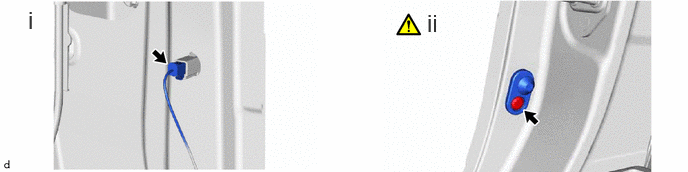

E445085N03
0.292,0.063 0.573,0.417 0.281,0.354 18 false i 4.448,0.094 4.729,0.448 0.281,0.354 18 false ii

i.

Disconnect the connector.


ii.

Using a T30 "TORX" socket wrench, remove the bolt to remove the front door courtesy light switch assembly.
