RM38T0EC _58 Vehicle Interior _112291 INTERIOR PANELS / TRIM _0501085 INSTRUMENT PANEL SAFETY PAD A

INTERIOR PANELS / TRIM  INSTRUMENT PANEL SAFETY PAD  REASSEMBLY


CAUTION / NOTICE / HINT

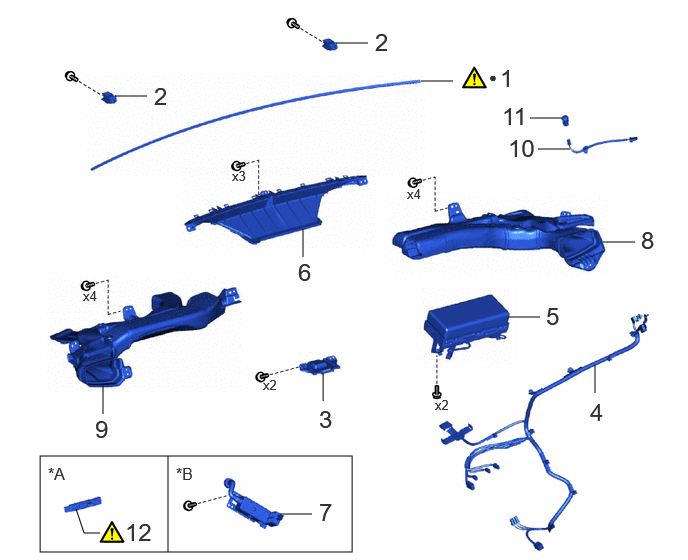

COMPONENTS (REASSEMBLY)
B658538N01
0.417,4.75 3.667,5.75 3.25,1 1.198,1 1.531,1 false 3.5,0.448 3.833,0.448 false 5.521,1.229 5.854,1.229 false 5.604,1.552 5.938,1.552 false 3.156,2.385 3.156,2.677 false 6.281,2.521 6.615,2.521 false 5.292,3.302 5.625,3.302 false 6.198,3.802 6.198,4.094 false 1.073,4.021 1.073,4.313 false 3.365,3.885 3.365,4.177 false 4.385,0.844 4.719,0.844 false 1.75,5.75 1.75,4.75 false 2.917,5.354 3.25,5.354 false 0.792,5.302 0.875,5.552 0.875,5.552 1.042,5.552 false 5.229,1.063 5.573,1.438 0.344,0.375 18 false 11 5.292,1.396 5.656,1.75 0.365,0.354 18 false 10 0.99,4.323 1.271,4.677 0.281,0.354 18 false 9 6.677,2.354 6.958,2.708 0.281,0.354 18 false 8 5.688,3.146 5.969,3.5 0.281,0.354 18 false 5 6.146,4.146 6.427,4.5 0.281,0.354 18 false 4 3.906,0.292 4.333,0.583 0.427,0.292 18 false 2 5.208,0.667 5.698,1.021 0.49,0.354 18 false 1 1.604,0.854 1.917,1.167 0.313,0.313 18 false 2 3.104,2.688 3.5,3.01 0.396,0.323 18 false 6 2.417,1.75 2.729,1.948 0.313,0.198 10 false x3 4.24,1.938 4.552,2.135 0.313,0.198 10 false x4 4.531,4.135 4.844,4.333 0.313,0.198 10 false x2 0.865,3 1.177,3.198 0.313,0.198 10 false x4 3.323,4.219 3.74,4.573 0.417,0.354 18 false 3 5.094,0.719 5.25,0.917 0.156,0.198 10 false ● 2.74,3.927 3.052,4.125 0.313,0.198 10 false x2 0.5,4.833 0.875,5.073 0.375,0.24 12 false *A 1.833,4.833 2.208,5.073 0.375,0.24 12 false *B 1.302,5.396 1.729,5.75 0.427,0.354 18 false 12 3.323,5.188 3.604,5.542 0.281,0.354 18 false 7

Procedure Part Name Code
Z101186

Z101188

Z101187

1 NO. 1 INSTRUMENT PANEL CUSHION 55355 (Click here) - -
2 NO. 1 INSTRUMENT PANEL PIN 55328 - - -
3 NAVIGATION ANTENNA ASSEMBLY WITH BRACKET - - - -
4 ANTENNA CORD SUB-ASSEMBLY 86101 - - -
5 INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY 73960A - - -
6 DEFROSTER NOZZLE ASSEMBLY 55950G - - -
7 ION GENERATOR SUB-ASSEMBLY WITH NO. 1 ION GENERATOR BRACKET - - - -
8 NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY 55085 - - -
9 NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY 55084E - - -
10 NO. 2 INSTRUMENT PANEL WIRE 82142A - - -
11 AUTOMATIC LIGHT CONTROL SENSOR 89120A - - -
12 BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY 890G0 (Click here) - -

*A w/ Digital Key System *B w/ Ion Generator
● Non-reusable part - -

PROCEDURE

Hide 55355 1.INSTALL NO. 1 INSTRUMENT PANEL CUSHION

a.

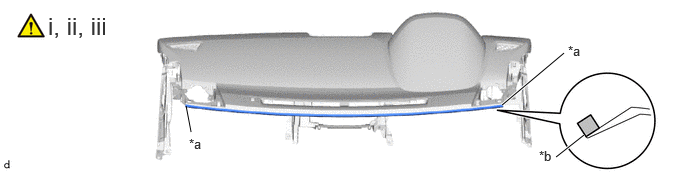

B603982C01
1.99,1.375 1.938,1.104 false 5.875,0.552 5.229,1.094 true 5.792,1.635 6.083,1.406 true 1.969,1.417 2.281,1.573 0.313,0.156 10 false *a 5.615,1.542 5.927,1.698 0.313,0.156 10 false *b 5.917,0.448 6.229,0.604 0.313,0.156 10 false *a 0.5,0.125 1.271,0.479 0.771,0.354 18 false i, ii, iii
*a Edge of Curved Surface *b Outline


i.

Clean the instrument panel assembly surface by the below procedure.

1. Remove any remaining double-sided tape from the instrument panel assembly.

2. Wipe off any tape adhesive residue with cleaner.


ii.

Remove the release paper from a new No. 1 instrument panel cushion.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



iii.

Install the No. 1 instrument panel cushion as shown in the illustration.



Hide 55328 2.INSTALL NO. 1 INSTRUMENT PANEL PIN

Hide 86101 3.INSTALL ANTENNA CORD SUB-ASSEMBLY

Hide 4.INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

Hide 73960A 5.INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

Hide 55950G 6.INSTALL DEFROSTER NOZZLE ASSEMBLY

Hide 7.INSTALL ION GENERATOR SUB-ASSEMBLY WITH NO. 1 ION GENERATOR BRACKET (w/ Ion Generator)

Hide 55085 8.INSTALL NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

Hide 55084E 9.INSTALL NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY

Hide 82142A 10.INSTALL NO. 2 INSTRUMENT PANEL WIRE

Hide 89120A 11.INSTALL AUTOMATIC LIGHT CONTROL SENSOR

Hide 890G0 12.INSTALL BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY (w/ Digital Key System)

Z101186

·

for Type A:

Click here(Click here)

·

for Type B:

Click here(Click here)
