RM38T0EC _58 Vehicle Interior _112290 POWER OUTLETS (INT) _0601633 WIRELESS CHARGER ASSEMBLY A

POWER OUTLETS (INT) WIRELESS CHARGER ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

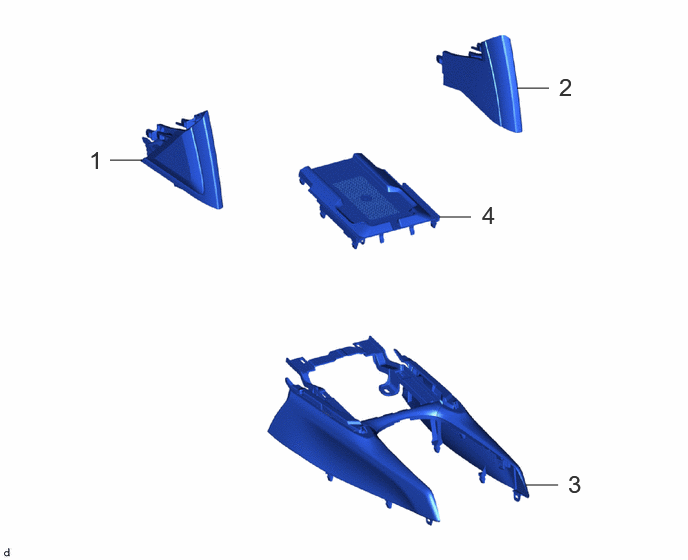

COMPONENTS (REMOVAL)

1.146,1.667 1.479,1.667 false 5.385,0.917 5.719,0.917 false 5.479,5.052 5.813,5.052 false 4.573,2.26 4.906,2.26 false 0.927,1.521 1.208,1.875 0.281,0.354 18 false 1 5.823,0.76 6.104,1.115 0.281,0.354 18 false 2 5.917,4.896 6.198,5.25 0.281,0.354 18 false 3 5.021,2.094 5.302,2.448 0.281,0.354 18 false 4

Procedure		Part Name Code
1	NO. 2 CONSOLE UPPER PANEL GARNISH	58834B	-	-	-
2	NO. 1 CONSOLE UPPER PANEL GARNISH	58833B	-	-	-
3	FRONT CONSOLE UPPER PANEL GARNISH	58831A	-	-	-
4	MOBILE WIRELESS CHARGER CRADLE ASSEMBLY	861C0	-	-	-

PROCEDURE

Hide Display 58834B 1.REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202307,999999,_58,_112291,_0501086,RM100000002BHCH_01_0068,

Hide Display 58833B 2.REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH

Use the same procedure as for the No. 2 console upper panel garnish.

Hide Display 58831A 3.REMOVE FRONT CONSOLE UPPER PANEL GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202307,999999,_58,_112291,_0501086,RM100000002BHCH_01_0054,

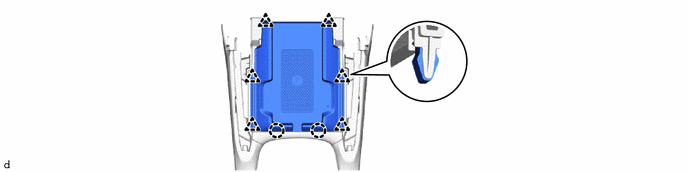

Hide Display 861C0 4.REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
