SLIDING ROOF / CONVERTIBLE  PANORAMIC MOON ROOF SYSTEM(Production Date from 2023/04)  PARTS LOCATION

ILLUSTRATION

4.24,2.75 5,4.083 5,4.083 5.167,4.083 true 3.177,2.125 2.063,0.99 2.063,0.99 1.896,0.99 true 3.292,1.719 2.177,0.583 2.177,0.583 2.01,0.583 true 4.802,1.229 4.417,0.583 4.417,0.583 4.25,0.583 true 4.99,1.26 4.583,0.333 4.583,0.333 4.417,0.333 true 1.729,0.906 2.042,1.104 0.313,0.198 10 false *1 5.208,4.01 5.521,4.208 0.313,0.198 10 false *2 1.823,0.51 2.135,0.708 0.313,0.198 10 false *3 4.083,0.5 4.396,0.698 0.313,0.198 10 false *4 4.24,0.25 4.552,0.448 0.313,0.198 10 false *5

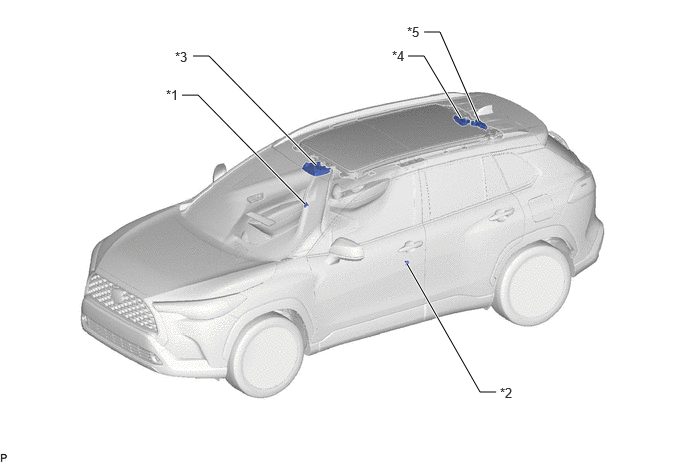

*1	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)	*2	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)
*3	SLIDING ROOF SWITCH (MAP LIGHT ASSEMBLY)	*4	ROOF SUNSHADE ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY)
*5	SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY)	-	-

ILLUSTRATION

2.083,0.667 2.25,0.667 2.25,0.667 3.083,1.833 true 2.51,2.917 3.5,4.417 3.5,4.417 3.667,4.417 true 1.417,1.25 1.583,1.25 1.583,1.25 2.417,2.417 true 1.417,3.531 1.583,3.531 1.583,3.531 2.25,2.698 true 1.917,0.583 2.229,0.74 0.313,0.156 10 false *1 1.26,1.156 1.573,1.313 0.313,0.156 10 false *2 1.26,3.448 1.573,3.604 0.313,0.156 10 false *3 3.698,4.344 4.01,4.5 0.313,0.156 10 false *4

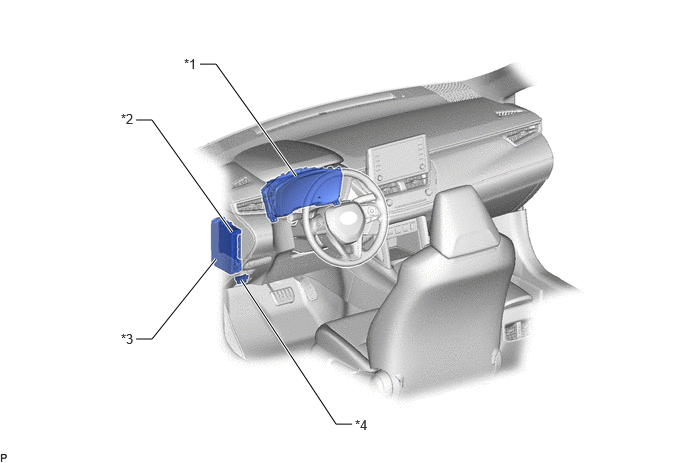

*1	COMBINATION METER ASSEMBLY	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	POWER DISTRIBUTION BOX ASSEMBLY - S/ROOF FUSE	*4	DLC3
