SLIDING ROOF / CONVERTIBLE  SLIDING ROOF SYSTEM(Production Date from 2023/04)  PARTS LOCATION

ILLUSTRATION

3.323,1.583 4.073,0.5 4.073,0.5 4.24,0.5 true 3.24,1.677 2.531,0.594 2.531,0.594 2.365,0.594 true 4.323,2.74 4.979,3.938 4.979,3.938 5.146,3.938 true 3.208,2.083 2.333,0.917 2.333,0.917 2.167,0.917 true 4.271,0.417 4.583,0.573 0.313,0.156 10 false *1 2.198,0.51 2.51,0.667 0.313,0.156 10 false *2 2,0.844 2.313,1 0.313,0.156 10 false *3 5.198,3.865 5.51,4.021 0.313,0.156 10 false *4

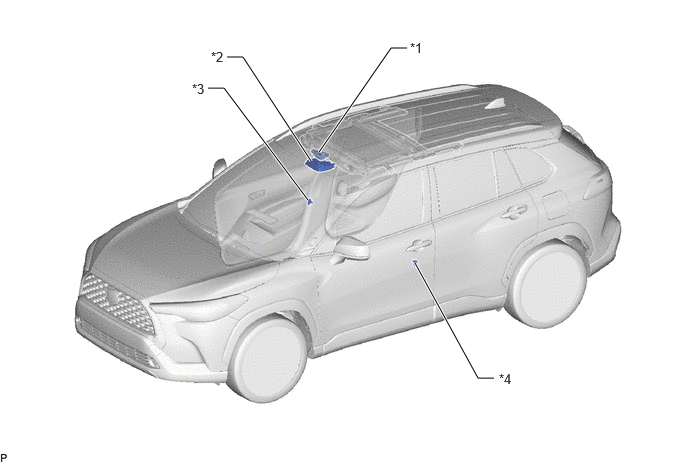

*1	SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY)	*2	SLIDING ROOF SWITCH (MAP LIGHT ASSEMBLY)
*3	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)	*4	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)

ILLUSTRATION

2.083,0.667 2.25,0.667 2.25,0.667 3.083,1.833 true 2.51,2.917 3.5,4.417 3.5,4.417 3.667,4.417 true 1.417,1.25 1.583,1.25 1.583,1.25 2.417,2.417 true 1.417,3.531 1.583,3.531 1.583,3.531 2.25,2.698 true 1.917,0.583 2.229,0.74 0.313,0.156 10 false *1 1.26,1.156 1.573,1.313 0.313,0.156 10 false *2 1.26,3.448 1.573,3.604 0.313,0.156 10 false *3 3.698,4.344 4.01,4.5 0.313,0.156 10 false *4

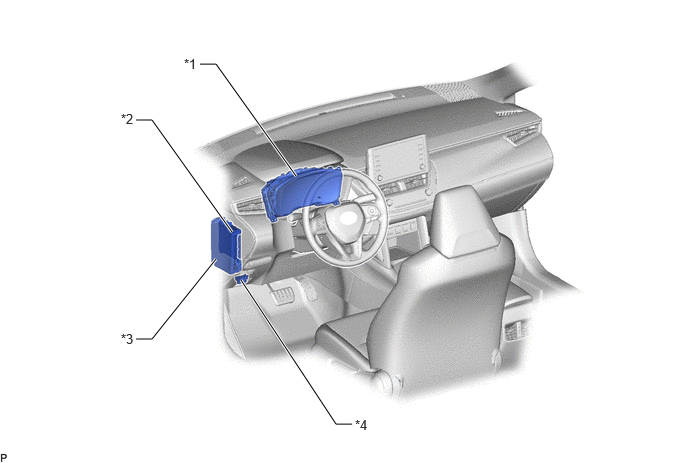

*1	COMBINATION METER ASSEMBLY	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	POWER DISTRIBUTION BOX ASSEMBLY - S/ROOF FUSE	*4	DLC3
