EXTERIOR PANELS / TRIM REAR BUMPER(for Type A) REASSEMBLY

CAUTION / NOTICE / HINT

COMPONENTS (REASSEMBLY)

6.354,5.25 7.104,5.417 0.75,0.167 0.5,3.521 0.5,3.188 false 3.75,0.667 3.833,0.51 3.833,0.51 4,0.51 false 3.01,4.156 3.344,4.156 false 5.448,5.25 5.615,5.469 5.615,5.469 5.781,5.469 false 5.938,3.198 6.271,3.198 false 6.188,1.667 6.521,1.667 false 5.917,0.417 6.25,0.417 false 6.729,5.25 6.729,4.917 false 6.313,0.229 6.865,0.583 0.552,0.354 18 false 5 4.073,0.344 4.625,0.698 0.552,0.354 18 false 4 6.563,1.479 6.979,1.885 0.417,0.406 18 false 7 0.438,3.521 0.99,3.875 0.552,0.354 18 false 6 6.323,3.031 6.875,3.385 0.552,0.354 18 false 3 2.781,3.99 3.333,4.344 0.552,0.354 18 false 2 5.854,5.302 6.406,5.656 0.552,0.354 18 false 1 6.792,4.865 7.104,5.063 0.313,0.198 10 false x8 4.583,1.052 4.896,1.25 0.313,0.198 10 false x2 6.448,0.885 6.76,1.083 0.313,0.198 10 false x2 6.417,5.25 7.135,5.479 0.719,0.229 8 false 18 (184, 13)

Procedure		Part Name Code
1	REAR BUMPER REINFORCEMENT SUB-ASSEMBLY	52023	-	-	-
2	REAR BUMPER UPPER RETAINER LH	52563A	-	-	-
3	REAR BUMPER UPPER RETAINER RH	52562B	-	-	-
4	REAR COMBINATION LIGHT ASSEMBLY LH	81560	-	-	-
5	REAR COMBINATION LIGHT ASSEMBLY RH	81550	-	-	-
6	REAR BUMPER SIDE RETAINER LH	52576	-	-	-
7	REAR BUMPER SIDE RETAINER RH	52575	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

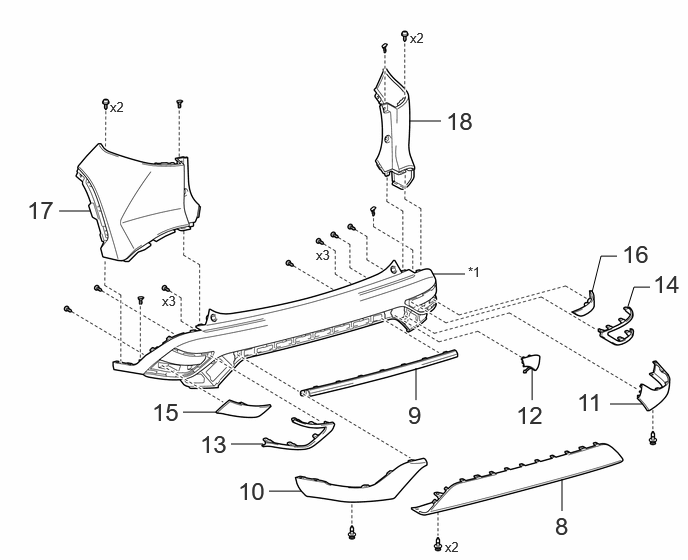

0.615,2.198 0.948,2.198 false 4.26,1.26 4.594,1.26 false 1.906,4.292 2.24,4.292 false 2.406,4.625 2.74,4.625 false 2.802,5.115 3.135,5.115 false 6.354,4.208 6.688,4.208 false 4.333,3.833 4.333,4.167 false 5.542,3.833 5.542,4.167 false 5.854,4.99 5.854,5.323 false 6.427,2.667 6.26,2.667 6.26,2.667 6.167,3.042 false 6.771,2.99 6.604,2.99 6.604,2.99 6.542,3.188 false 4.51,2.854 4.844,2.854 false 0.281,2.042 0.604,2.323 0.323,0.281 18 false 17 4.646,1.115 5.042,1.438 0.396,0.323 18 false 18 1.583,4.146 1.979,4.438 0.396,0.292 18 false 15 2.083,4.479 2.49,4.781 0.406,0.302 18 false 13 6.479,2.5 6.854,2.833 0.375,0.333 18 false 16 6.802,2.813 7.146,3.125 0.344,0.313 18 false 14 5.375,4.177 5.76,4.49 0.385,0.313 18 false 12 2.479,4.969 2.865,5.281 0.385,0.313 18 false 10 6.01,4.042 6.396,4.354 0.385,0.313 18 false 11 4.25,4.177 4.49,4.49 0.24,0.313 18 false 9 5.781,5.333 6.167,5.646 0.385,0.313 18 false 8 4.271,0.313 4.531,0.552 0.26,0.24 10 false x2 1.146,1.031 1.406,1.271 0.26,0.24 10 false x2 1.688,3.052 1.948,3.292 0.26,0.24 10 false x3 3.292,2.573 3.552,2.813 0.26,0.24 10 false x3 4.635,5.615 4.896,5.802 0.26,0.188 10 false x2 4.875,2.75 5.135,2.99 0.26,0.24 10 false *1

Procedure		Part Name Code
8	REAR BUMPER LOWER COVER	52169C	-	-	-
9	REAR BUMPER BAR	52151E	-	-	-
10	REAR BUMPER BAR LH	52153	-	-	-
11	REAR BUMPER BAR RH	52152	-	-	-
12	REAR BUMPER PLATE RH	52163A	-	-	-
13	REAR BUMPER SIDE MOULDING LH	52753	-	-	-
14	REAR BUMPER SIDE MOULDING RH	52752	-	-	-
15	REFLEX REFLECTOR ASSEMBLY LH	81920	-	-	-
16	REFLEX REFLECTOR ASSEMBLY RH	81910	-	-	-
17	REAR BUMPER UPPER COVER LH	52166A	-	-	-
18	REAR BUMPER UPPER COVER RH	52165A	-	-	-

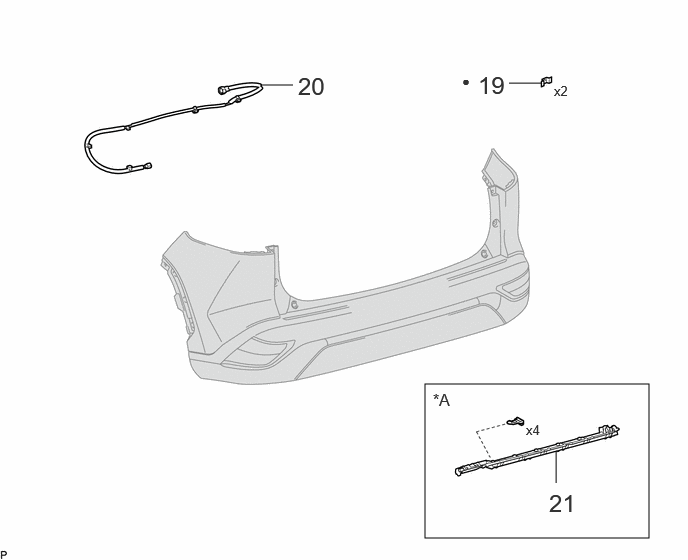

REAR BUMPER COVER

4.427,4 6.76,5.604 2.333,1.604 5.792,5.031 5.792,4.698 false 2.719,0.885 3.052,0.885 false 5.302,0.865 5.635,0.865 false 5.719,5.094 6.208,5.427 0.49,0.333 18 false 21 3.104,0.75 3.5,1.083 0.396,0.333 18 false 20 4.979,0.74 5.26,1.094 0.281,0.354 18 false 19 4.813,0.76 5.094,1.115 0.281,0.354 10 false ● 5.479,4.396 5.76,4.75 0.281,0.354 10 false x4 5.771,0.865 6.042,1.104 0.271,0.24 10 false x2 4.51,4.063 4.792,4.417 0.281,0.354 12 false *A

Procedure		Part Name Code
19	ULTRASONIC SENSOR CLIP	89348Y	(202201,999999,_59,_114126,_0579513,RM1000000028TB0_01_0313,)	-	-
20	NO. 6 FLOOR WIRE	82169A	-	-	-
21	KICK DOOR CONTROL SENSOR ASSEMBLY	891B0	-	-	-

*A	w/ Kick Sensor	-	-
●	Non-reusable part	-	-

PROCEDURE

Hide Display 52023 1.INSTALL REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

Torque:: 18 N*m (184 kgf*cm, 13 ft.*lbf)

Hide Display 52563A 2.INSTALL REAR BUMPER UPPER RETAINER LH

Hide Display 52562B 3.INSTALL REAR BUMPER UPPER RETAINER RH

Hide Display 81560 4.INSTALL REAR COMBINATION LIGHT ASSEMBLY LH

Hide Display 81550 5.INSTALL REAR COMBINATION LIGHT ASSEMBLY RH

Hide Display 52576 6.INSTALL REAR BUMPER SIDE RETAINER LH

Hide Display 52575 7.INSTALL REAR BUMPER SIDE RETAINER RH

Hide Display 52169C 8.INSTALL REAR BUMPER LOWER COVER

Hide Display 52151E 9.INSTALL REAR BUMPER BAR

Hide Display 52153 10.INSTALL REAR BUMPER BAR LH

Hide Display 52152 11.INSTALL REAR BUMPER BAR RH

Hide Display 52163A 12.INSTALL REAR BUMPER PLATE RH

Hide Display 52753 13.INSTALL REAR BUMPER SIDE MOULDING LH

Hide Display 52752 14.INSTALL REAR BUMPER SIDE MOULDING RH

Hide Display 81920 15.INSTALL REFLEX REFLECTOR ASSEMBLY LH

Hide Display 81910 16.INSTALL REFLEX REFLECTOR ASSEMBLY RH

Hide Display 52166A 17.INSTALL REAR BUMPER UPPER COVER LH

Hide Display 52165A 18.INSTALL REAR BUMPER UPPER COVER RH

Hide Display 89348Y 19.INSTALL ULTRASONIC SENSOR CLIP

NOTICE:: When installing the 2 new ultrasonic sensor clips, heat the rear bumper cover heat light.

Item	Temperature
Rear Bumper Cover	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts, touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the rear bumper cover excessively.

3.031,3.26 3.156,3.094 3.156,3.094 3.281,3.26 true 4.135,3.26 4.26,3.094 4.26,3.094 4.385,3.26 true 0.604,2.354 1.156,2.708 0.552,0.354 18 false ii 2.229,0.156 2.781,0.51 0.552,0.354 18 false i 3.083,2.906 3.25,3.073 0.167,0.167 10 true *a 4.188,2.906 4.354,3.073 0.167,0.167 10 true *a

Location Line

Clean the rear bumper cover surface by the below procedure.

1. Using a heat light, heat the rear bumper cover surface.

2. Remove any remaining double-sided tape from the rear bumper cover.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:: ·

Installing the 2 ultrasonic sensor clips with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

ii.

Install 2 new ultrasonic sensor clips by the below procedure.

1. Using a heat light, heat the rear bumper cover surface.

2. Remove the release paper from the 2 ultrasonic sensor clips.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

3. Install the 2 ultrasonic sensor clips along the location line on the rear bumper assembly as shown in the illustration.

Hide Display 82169A 20.INSTALL NO. 6 FLOOR WIRE

Hide Display 891B0 21.INSTALL KICK DOOR CONTROL SENSOR ASSEMBLY (w/ Kick Sensor)
