RM38T0EC
_51
Engine / Hybrid System
_115233
STOP AND START
_0514517
VACUUM SENSOR ASSEMBLY
A
STOP AND START VACUUM SENSOR ASSEMBLY INSTALLATION
CAUTION / NOTICE / HINT

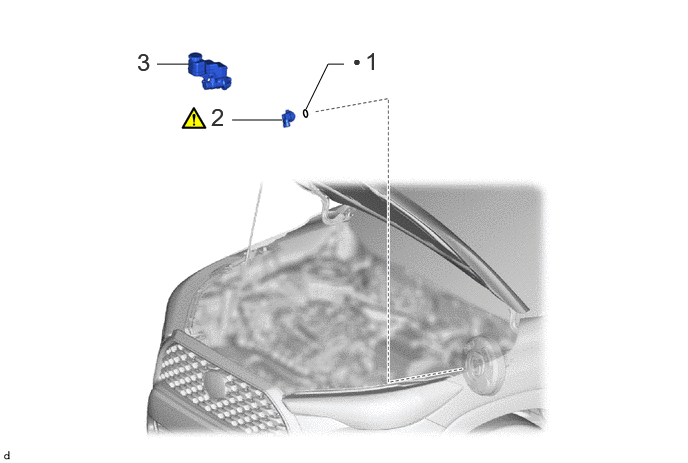

COMPONENTS (INSTALLATION)
1.635,0.667 1.969,0.667
false
3.188,1.135 3.417,0.667
3.417,0.667 3.583,0.667
false
2.417,1.25 2.938,1.25
false
1.427,0.5 1.708,0.854
0.281,0.354
18
false
3
2.198,1.073 2.479,1.427
0.281,0.354
18
false
2
3.802,0.49 4.083,0.844
0.281,0.354
18
false
1
3.677,0.552 3.833,0.75
0.156,0.198
10
false
●
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | VACUUM SENSOR GROMMET | - | - | - | - |
| 2 | VACUUM SENSOR ASSEMBLY | 89420H | ( 202201,999999,_51,_115233,_0514517,RM1000000020SR0_01_0002,)
|
- | - |
| 3 | BRAKE MASTER CYLINDER SUB-ASSEMBLY | 47201 | - | - | - |
| ● | Non-reusable part | - | - |
PROCEDURE
1.INSTALL VACUUM SENSOR GROMMET
89420H
2.INSTALL VACUUM SENSOR ASSEMBLY
a.
2.854,1.281 3.042,1.479
0.188,0.198
10
true
*a
0.406,0.042 1.781,0.396
1.375,0.354
18
false
i, ii

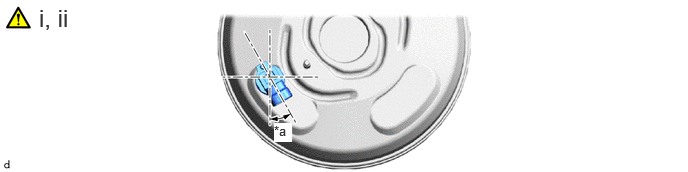

| *a | 30° +/- 6° | - | - |
i.
Install the vacuum sensor assembly to the brake booster assembly so that the vacuum sensor assembly is angled as shown in the illustration.
ii.
Connect the vacuum sensor assembly connector to the vacuum sensor assembly.
47201
3.INSTALL BRAKE MASTER CYLINDER SUB-ASSEMBLY
