THEFT DETERRENT / KEYLESS ENTRY  IMMOBILISER SYSTEM(w/o Smart Entry and Start System)  PARTS LOCATION

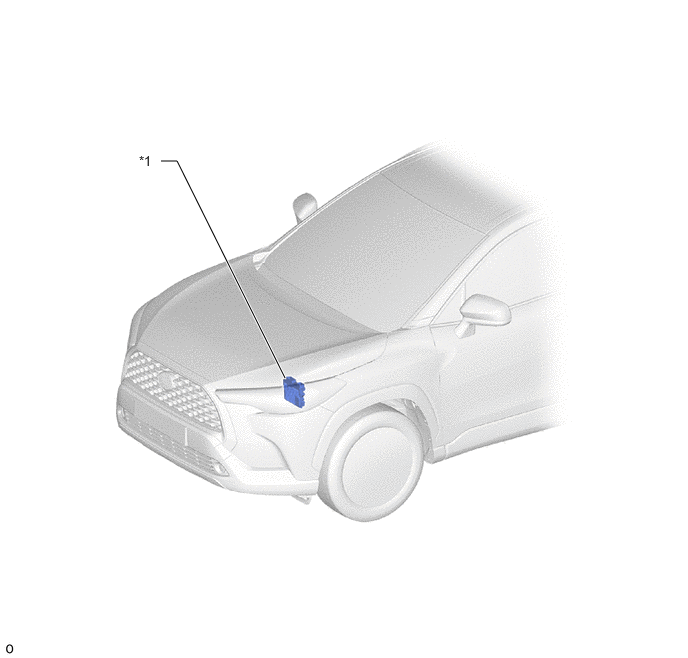

ILLUSTRATION

1.677,1.677 1.844,1.677 1.844,1.677 2.969,3.938 true 1.448,1.594 1.76,1.792 0.313,0.198 10 false *1

*1

ECM

-

-

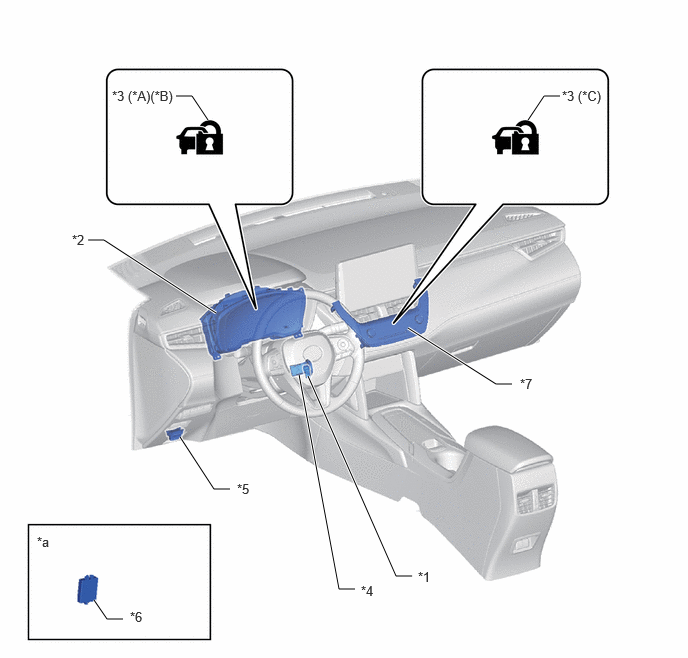

ILLUSTRATION

2.25,3.26 1.083,2.5 1.083,2.5 0.917,2.5 true 3.208,3.917 4.125,6 4.125,6 4.292,6 true 3.115,3.906 3.531,6.135 3.531,6.135 3.698,6.135 true 1.875,4.552 2.229,5.094 2.229,5.094 2.396,5.094 true 0.979,6.25 1.115,6.448 1.115,6.448 1.281,6.448 true 2.167,1.25 2,1 2,1 1.833,1 true 5.5,1.25 5.667,1 5.667,1 5.833,1 true 4.25,3.417 5.167,4 5.167,4 5.333,4 true 4.354,5.927 4.667,6.177 0.313,0.25 10 false *1 0.75,2.417 0.979,2.667 0.229,0.25 10 false *2 1.167,0.917 2.063,1.229 0.896,0.313 10 false *3 (*A)(*B) 3.76,6.073 4.094,6.313 0.333,0.24 10 false *4 2.469,5.01 2.802,5.26 0.333,0.25 10 false *5 1.354,6.344 1.688,6.594 0.333,0.25 10 false *6 0.385,5.563 0.719,5.813 0.333,0.25 10 false *a 5.854,0.917 6.333,1.167 0.479,0.25 10 false *3 (*C) 5.417,3.917 5.729,4.167 0.313,0.25 10 false *7

*A	Production Date from 2022/01 to 2023/04	*B	Air conditioning panel for mechanical control type (Production Date from 2023/04)
*C	Air conditioning panel for electrical control type (Production Date from 2023/04)	-	-
*1	UNLOCK WARNING SWITCH ASSEMBLY	*2	COMBINATION METER ASSEMBLY
*3	SECURITY INDICATOR LIGHT	*4	TRANSPONDER KEY COIL
*5	DLC3	*6	TRANSPONDER KEY ECU ASSEMBLY
*7	AIR CONDITIONER CONTROL ASSEMBLY	-	-
*a	Refer to Service Bulletin for installation position of the part.	-	-
