EXTERIOR PANELS / TRIM ROOF RACK REMOVAL

CAUTION / NOTICE / HINT

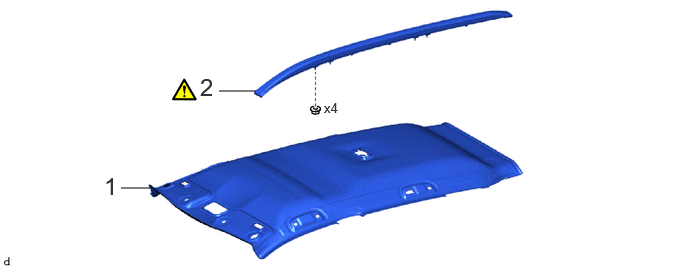

COMPONENTS (REMOVAL)

2.281,0.948 2.667,0.948 false 1.26,1.958 1.563,1.958 false 3.375,1.042 3.688,1.24 0.313,0.198 10 false x4 1.083,1.792 1.385,2.135 0.302,0.344 18 false 1 2.083,0.76 2.385,1.104 0.302,0.344 18 false 2

Procedure		Part Name Code
1	ROOF HEADLINING ASSEMBLY	63310	-	-	-
2	ROOF RACK ASSEMBLY	63470B	(202201,999999,_59,_114126,_0512148,RM1000000020HA9_03_0008,)	-	-

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 63310 1.REMOVE ROOF HEADLINING ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202201,202307,_58,_112291,_0501087,RM100000001Z4VN,202307,999999,_58,_112291,_0501087,RM100000002BHCJ,

Hide Display 63470B 2.REMOVE ROOF RACK ASSEMBLY

1.323,2.99 1.542,3.292 1.542,3.292 1.771,2.948 true 5.521,3.344 5.802,3.156 true 0.365,0.031 0.646,0.385 0.281,0.354 18 false i 4.021,0.063 4.208,0.354 0.188,0.292 18 true ii 0.875,2.083 1.063,2.375 0.188,0.292 18 true iii 1.448,3.333 1.635,3.542 0.188,0.208 10 true *a 5.323,3.354 5.51,3.563 0.188,0.208 10 true *a

Double-sided Tape

Apply protective tape around the roof rack assembly.

ii.

Remove the 4 nuts.

iii.

Separate the double-sided tape to remove the roof rack assembly.
