LIGHTING (EXT) LIGHTING SYSTEM CUSTOMIZE PARAMETERS

CUSTOMIZE LIGHTING SYSTEM (EXT)

NOTICE:: ·

When the customer requests a change in a function, first make sure that the function can be customized.

·

Be sure to make a note of the current settings before customizing.

·

When troubleshooting a function, first make sure that the function is set to the default setting.

HINT:: The following items can be customized.

Customizing with the GTS

Enter the following menus: Customize Setting / Light Control.

ii.

Select the setting by referring to the table below.

Light Control

Tester Display	Description	Default	Setting	ECU
Tail Remind Buzzer Function	Sounds a buzzer when the driver door is opened with the light control switch in the tail or head position.	Enable	$00:Disable,$01:Enable	Main Body ECU (Multiplex Network Body ECU)
Brightness Level Adjust (Lowering)	Changes the ambient brightness level required to dim the lights such as the indicator lights of the combination meter, A/C indicator light and clock.*A	Normal	$00:Normal,$01:Dark2,$02:Dark1,$03:Light1,$04:Light2	Main Body ECU (Multiplex Network Body ECU)
Brightness Level Adjust (Canceling)	Changes the ambient brightness level required to cancel the dimming of the lights such as the indicator lights of the combination meter, A/C indicator light and clock.*B	Normal	$00:Normal,$01:Dark2,$02:Dark1,$03:Light1,$04:Light2	Main Body ECU (Multiplex Network Body ECU)
Sensitivity Adjust	Adjusts the sensitivity of the automatic light control system.1C	Normal	$01:Dark2,$02:Dark1,$00:Normal,$03:Light1,$04:Light2	Main Body ECU (Multiplex Network Body ECU)

50006 8

*1: Customize settings may not be able to be selected from "Light Control" if the vehicle recognizes driver 1, 2 or 3 with the My Settings function. In that case, change the settings from "My Settings".

Click hereVehicle Interior>MY SETTINGS>MY SETTINGS SYSTEM>CUSTOMIZE PARAMETERS202201,999999,_58,_142036,_0593734,RM100000002AMBA,

HINT:: The sensitivity adjustment may be difficult to confirm. Check by driving the vehicle.

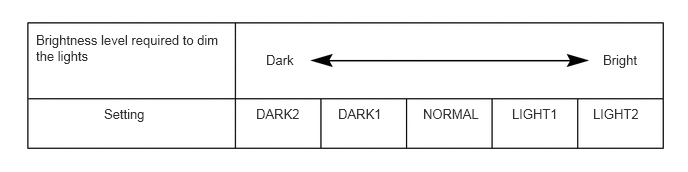

0.375,0.333 2.292,0.708 1.917,0.375 10 Brightness level required to dim the lights 2.771,0.542 3.385,0.74 0.615,0.198 10 Dark 6.281,0.542 6.896,0.74 0.615,0.198 10 Bright 1.083,1.104 1.729,1.333 0.646,0.229 10 Setting 2.667,1.104 3.313,1.333 0.646,0.229 10 DARK2 3.521,1.104 4.167,1.333 0.646,0.229 10 DARK1 4.406,1.104 5.083,1.333 0.677,0.229 10 NORMAL 5.333,1.104 6.01,1.333 0.677,0.229 10 LIGHT1 6.177,1.104 6.76,1.313 0.583,0.208 10 LIGHT2

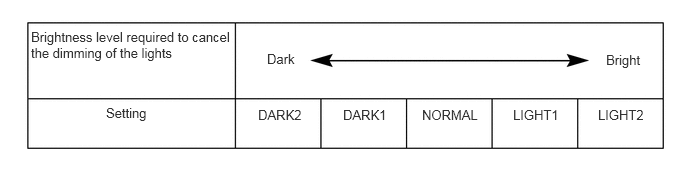

0.323,0.302 2.427,0.698 2.104,0.396 10 false Brightness level required to cancel the dimming of the lights 1.104,1.094 2,1.365 0.896,0.271 10 false Setting 2.781,0.531 3.333,0.781 0.552,0.25 10 false Dark 6.313,0.542 6.865,0.792 0.552,0.25 10 false Bright 2.688,1.115 3.24,1.365 0.552,0.25 10 false DARK2 3.573,1.115 4.125,1.365 0.552,0.25 10 false DARK1 4.396,1.115 5.042,1.344 0.646,0.229 10 false NORMAL 6.229,1.115 6.781,1.365 0.552,0.25 10 false LIGHT2 5.344,1.115 5.896,1.365 0.552,0.25 10 false LIGHT1

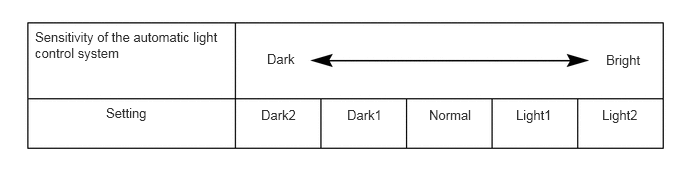

0.365,0.302 2.354,0.708 1.99,0.406 10 Sensitivity of the automatic light control system 1.104,1.094 2,1.365 0.896,0.271 10 Setting 2.781,0.531 3.333,0.781 0.552,0.25 10 Dark 6.313,0.542 6.865,0.792 0.552,0.25 10 Bright 2.719,1.115 3.271,1.365 0.552,0.25 10 Dark2 3.615,1.115 4.167,1.365 0.552,0.25 10 Dark1 4.469,1.115 5.021,1.365 0.552,0.25 10 Normal 6.271,1.115 6.823,1.365 0.552,0.25 10 Light2 5.375,1.115 5.927,1.365 0.552,0.25 10 Light1

Warning

Tester Display	Description	Default	Setting	ECU
Lane Change Flashing Times Adjust	Function to change the lane change flashing times.	3	$00:OFF,$01:3,$02:4,$03:5,$04:6,$05:7	Combination Meter Assembly
Proposal Services Function	Turns the suggestion service function on/off.*1	ON	$00:OFF,$01:Parked,$03:ON	Main Body ECU (Multiplex Network Body ECU)

50006 7

*1: Customize settings may not be able to be selected from "Warning" if the vehicle recognizes driver 1, 2 or 3 with the My Settings function. In that case, change the settings from "My Settings".

Click hereVehicle Interior>MY SETTINGS>MY SETTINGS SYSTEM>CUSTOMIZE PARAMETERS202201,999999,_58,_142036,_0593734,RM100000002AMBA,

Customizing with the multi-display

Enter the following menus: MENU / Setup / Vehicle / Vehicle customization / Lights settings.

ii.

Select the setting by referring to the table below.

Display	Default	Content	Setting	Relevant ECU
Headlights Auto-on Sensitivity	Normal	Adjusts the sensitivity of the automatic light control system.*A	More Bright, Bright, Normal, Dark, More Dark	Main Body ECU (Multiplex Network Body ECU)

HINT:: The sensitivity adjustment may be difficult to confirm. Check by driving the vehicle.

0.365,0.302 2.354,0.708 1.99,0.406 10 false Sensitivity of the automatic light control system 1.104,1.094 2,1.365 0.896,0.271 10 false Setting 2.781,0.531 3.333,0.781 0.552,0.25 10 false Dark 6.313,0.542 6.865,0.792 0.552,0.25 10 false Bright 2.531,1.125 3.365,1.406 0.833,0.281 10 false More Dark 3.646,1.125 4.198,1.375 0.552,0.25 10 false Dark 4.438,1.125 4.99,1.375 0.552,0.25 10 false Normal 6.115,1.125 6.969,1.531 0.854,0.406 10 false More Bright 5.365,1.125 5.844,1.427 0.479,0.302 10 false Bright
