RM38T0EC _59 Vehicle Exterior _113746 DOOR / HATCH _0510847 BACK DOOR SUPPORT A

DOOR / HATCH  BACK DOOR SUPPORT  REMOVAL


CAUTION / NOTICE / HINT

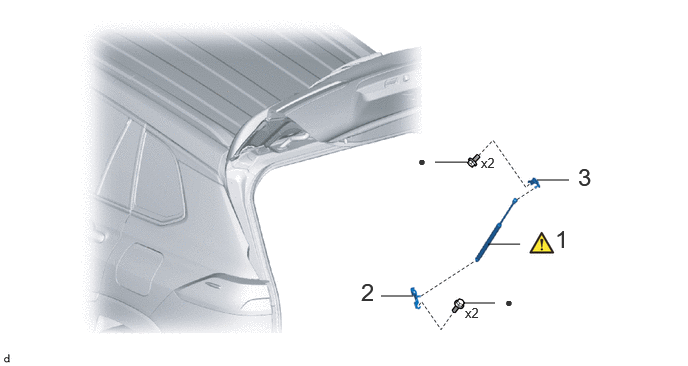

COMPONENTS (REMOVAL)
B635097N01
5.594,1.875 5.927,1.875 false 5.083,2.542 5.417,2.542 false 3.969,3.083 4.302,3.083 false 4.823,3.156 5.156,3.156 false 4.531,1.688 4.865,1.688 false 4.844,3.177 5.156,3.375 0.313,0.198 10 false x2 5.01,1.615 5.323,1.813 0.313,0.198 10 false x2 5.781,2.344 6.063,2.698 0.281,0.354 18 false 1 6.021,1.698 6.302,2.052 0.281,0.354 18 false 3 3.76,2.896 4.042,3.25 0.281,0.354 18 false 2 5.26,3.063 5.573,3.26 0.313,0.198 10 false ● 4.354,1.594 4.667,1.792 0.313,0.198 10 false ●

Procedure Part Name Code
Z101186

Z101188

Z101187

1 BACK DOOR STAY ASSEMBLY 68960B (Click here) - -
2 BACK DOOR DAMPER STAY UPPER BRACKET 68946 - - -
3 BACK DOOR DAMPER STAY LOWER BRACKET 68948 - - -

● Non-reusable part - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 68960B 1.REMOVE BACK DOOR STAY ASSEMBLY

Z101186

CAUTION:
B522759

·

Do not perform work if the back door is not securely supported.

·

The back door could fall, resulting in injury.



NOTICE:
·

Avoid touching the piston rod as much as possible to prevent foreign matter from attaching to it. Be sure to hold the cylinder while servicing.

·

Do not wear cotton gloves or other similar materials when handling the piston rod. Fibers may attach to the rod and result in gas leaks.

·

Do not apply any horizontal load to the door stay in order to prevent the piston rod from deforming.




a.

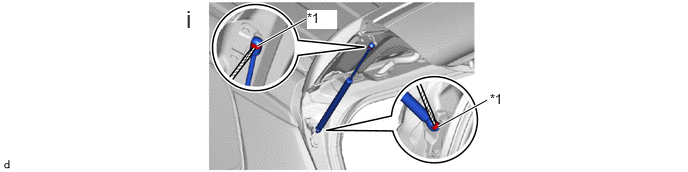

B587308C01
2.677,0.479 3.188,0.198 true 4.563,1.323 5.073,1.042 true 1.938,0.052 2.219,0.406 0.281,0.354 18 false i 3.198,0.104 3.51,0.302 0.313,0.198 10 true *1 5.104,0.948 5.417,1.146 0.313,0.198 10 true *1
*1 Stop Ring - -


i.

Using a screwdriver with its tip wrapped in protective tape, slightly raise the 2 stop rings and remove the back door stay assembly.

CAUTION:

Remove the back door stay assembly while supporting the back door by hand.


NOTICE:

Do not remove the stop rings from the back door stay assembly. Raise the stop rings just enough to allow the ball joints to be disengaged.

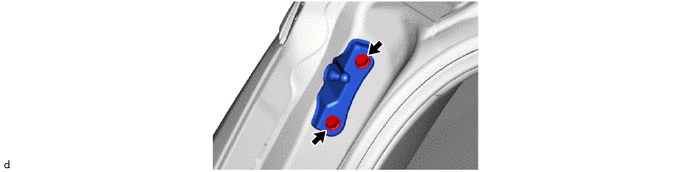

Hide 68946 2.REMOVE BACK DOOR DAMPER STAY UPPER BRACKET

a.
B587309

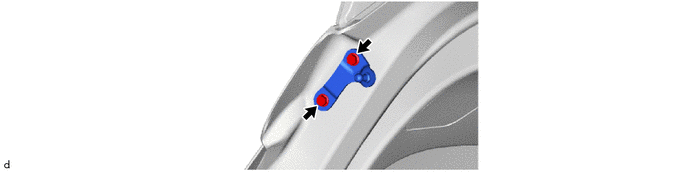

Hide 68948 3.REMOVE BACK DOOR DAMPER STAY LOWER BRACKET

a.
B587310
