POWER BACK DOOR WARNING BUZZER
A
DOOR / HATCH POWER BACK DOOR WARNING BUZZER INSTALLATION
CAUTION / NOTICE / HINT

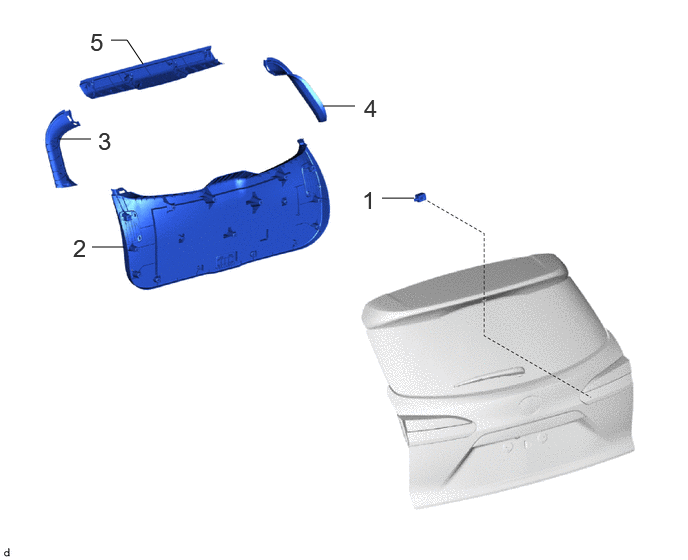

COMPONENTS (INSTALLATION)
3.979,2.063 4.313,2.063
false
0.958,2.573 1.292,2.573
false
3.365,1.104 3.698,1.104
false
0.615,1.448 0.948,1.448
false
1.156,0.417 1.323,0.417
1.323,0.417 1.49,0.667
false
0.938,0.292 1.219,0.646
0.281,0.354
18
false
5
3.771,1.938 4.052,2.292
0.281,0.354
18
false
1
0.76,2.438 1.042,2.792
0.281,0.354
18
false
2
1.021,1.323 1.302,1.677
0.281,0.354
18
false
3
3.792,0.979 4.073,1.333
0.281,0.354
18
false
4
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | POWER BACK DOOR WARNING BUZZER | 89747E | - | - | - |
| 2 | BACK DOOR TRIM PANEL ASSEMBLY | 64780A | - | - | - |
| 3 | BACK DOOR SIDE GARNISH LH | 67938A | - | - | - |
| 4 | BACK DOOR SIDE GARNISH RH | 67937B | - | - | - |
| 5 | BACK DOOR TRIM UPPER PANEL ASSEMBLY | 64790B | - | - | - |
PROCEDURE
89747E
1.INSTALL POWER BACK DOOR WARNING BUZZER
64780A
2.INSTALL BACK DOOR TRIM PANEL ASSEMBLY
67938A
3.INSTALL BACK DOOR SIDE GARNISH LH
67937B
4.INSTALL BACK DOOR SIDE GARNISH RH
64790B
5.INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY
