RM38T0EC _59 Vehicle Exterior _113746 DOOR / HATCH _0510843 POWER BACK DOOR TOUCH SENSOR G

DOOR / HATCH POWER BACK DOOR TOUCH SENSOR INSPECTION

PROCEDURE

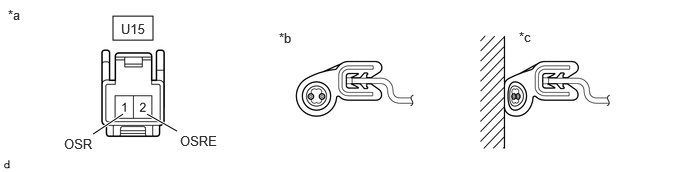

Hide Display 84270G 1.INSPECT POWER BACK DOOR SENSOR ASSEMBLY RH

1.177,0.167 1.594,0.417 0.417,0.25 1.531,1.188 1.844,1.365 true 1.281,1.188 0.969,1.396 true 0.083,0.073 0.396,0.271 0.313,0.198 10 false *a 5.406,0.302 5.719,0.5 0.313,0.198 10 false *c 2.906,0.313 3.219,0.51 0.313,0.198 10 false *b 1.875,1.385 2.542,1.594 0.667,0.208 10 false OSRE 0.667,1.417 1.177,1.615 0.51,0.198 10 false OSR 1.26,0.219 1.719,0.417 0.458,0.198 10 false U15

*a	Component without harness connected (Power Back Door Sensor Assembly RH)	*b	Not Pressed
*c	Pressed	-	-

Check the resistance of the power back door sensor Assembly RH.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
U15-1 (OSR)- U15-2 (OSRE)	Not pressed	950 Ω to 1050 Ω
U15-1 (OSR)- U15-2 (OSRE)	Pressed	Below 100 Ω

If the result is not as specified, replace the power back door sensor Assembly RH.

Hide Display 84280D 2.INSPECT POWER BACK DOOR SENSOR ASSEMBLY LH

1.177,0.156 1.594,0.406 0.417,0.25 1.531,1.188 1.844,1.365 true 1.281,1.188 0.969,1.396 true 0.083,0.073 0.396,0.271 0.313,0.198 10 false *a 5.406,0.302 5.719,0.5 0.313,0.198 10 false *c 2.906,0.313 3.219,0.51 0.313,0.198 10 false *b 1.875,1.385 2.542,1.594 0.667,0.208 10 false OSLE 0.656,1.417 1.167,1.615 0.51,0.198 10 false OSL 1.26,0.208 1.719,0.406 0.458,0.198 10 false U16

*a	Component without harness connected (Power Back Door Sensor Assembly LH)	*b	Not Pressed
*c	Pressed	-	-

Check the resistance of the power back door sensor Assembly LH.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
U16-1 (OSL)- U16-2 (OSLE)	Not pressed	950 Ω to 1050 Ω
U16-1 (OSL)- U16-2 (OSLE)	Pressed	Below 100 Ω

If the result is not as specified, replace the power back door sensor Assembly LH.
