Vehicle Exterior
_113746
DOOR / HATCH
_0510842
RESERVE LOCK SWITCH
G
DOOR / HATCH RESERVE LOCK SWITCH INSPECTION
PROCEDURE
84931C
1.INSPECT BACK DOOR CONTROL SWITCH
a.
1.5,1.75 1.917,2
0.417,0.25
0.74,3.125 1.135,2.75
true
1.427,3.146 1.406,2.771
true
2.125,3.135 2.021,2.75
true
2.719,3.135 2.292,2.74
true
0.667,1.844 0.979,2
0.313,0.156
10
false
*a
1.271,3.188 1.885,3.385
0.615,0.198
10
false
MSW
0.625,3.177 1.24,3.375
0.615,0.198
10
false
ILL+
2.677,3.188 3.292,3.385
0.615,0.198
10
false
ILL-
2,3.188 2.615,3.385
0.615,0.198
10
false
MSE
1.594,1.802 2.052,2
0.458,0.198
10
false
U12

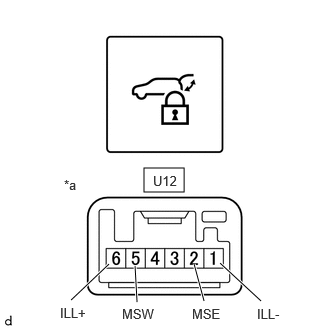

| *a | Component without harness connected
(Back Door Control Switch) |
Check the resistance.
i.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Switch Condition Specified Condition U12-5 (MSW) - U12-2(MSE) Switch off 10 kΩ or higher U12-5 (MSW) - U12-2(MSE) Switch on Below 1 Ω
If the result is not as specified, replace the back door control switch.
b.
Check that the LED illuminates.
i.
Apply auxiliary battery voltage to the power back door main switch connector, and check that the back door control switch LED illuminates.
- OK:
Measurement Condition Specified Condition Auxiliary battery positive (+) → U12-6 (ILL+)
Auxiliary battery negative (-) → U12-1 (ILL-)LED illuminates
If the result is not as specified, replace the back door control switch.
