DOOR / HATCH
_0510841
POWER BACK DOOR CONTROL SWITCH
G
DOOR / HATCH POWER BACK DOOR CONTROL SWITCH INSPECTION
PROCEDURE
84966A

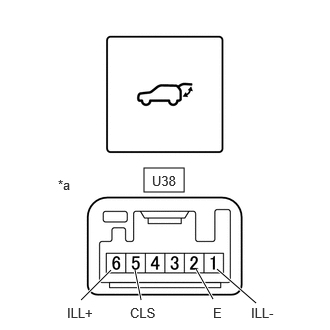

1.INSPECT NO. 1 POWER BACK DOOR CONTROL SWITCH
a.
1.5,1.75 1.917,2
0.417,0.25
0.844,3.125 1.156,2.813
true
1.469,3.125 1.406,2.813
true
2.219,3.115 2.042,2.802
true
2.667,3.156 2.26,2.802
true
1.354,3.177 1.813,3.375
0.458,0.198
10
false
CLS
0.698,3.177 1.156,3.375
0.458,0.198
10
false
ILL+
2.615,3.177 3.073,3.375
0.458,0.198
10
false
ILL-
2.219,3.177 2.677,3.375
0.458,0.198
10
false
E
0.604,1.844 0.917,2
0.313,0.156
10
false
*a
1.583,1.802 2.042,2
0.458,0.198
10
false
U38
| *a | Component without harness connected
(No. 1 Power Back Door Control Switch) |
Check the resistance.
i.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Switch Condition Specified Condition U38-5 (CLS) - U38-2 (E) Switch off 10 kΩ or higher U38-5 (CLS) - U38-2 (E) Switch on Below 1 Ω
If the result is not as specified, replace the No. 1 power back door control switch.
b.
Check that the LED illuminates.
i.
Apply auxiliary battery voltage to the No. 1 power back door control switch connector, and check that the No. 1 power back door control switch LED illuminates.
- OK:
Measurement Condition Specified Condition Auxiliary battery positive (+) → U38-6 (ILL+)
Auxiliary battery negative (-) → U38-1 (ILL-)LED illuminates
If the result is not as specified, replace the No. 1 power back door control switch.
