DOOR / HATCH  BACK DOOR WEATHERSTRIP  INSTALLATION


CAUTION / NOTICE / HINT

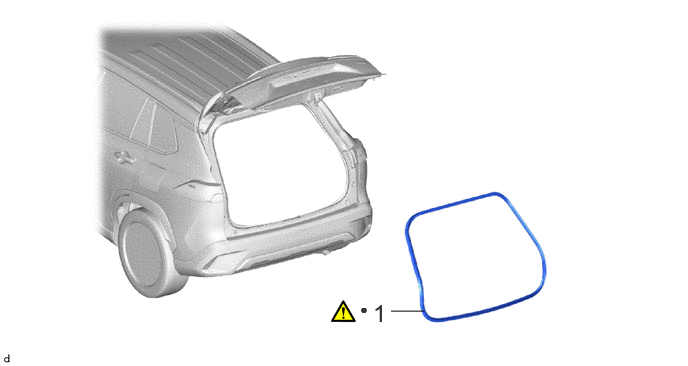

COMPONENTS (INSTALLATION)
B633301N01
4.073,3.24 4.417,3.24 false 3.885,3.115 4.167,3.469 0.281,0.354 18 false 1 3.75,3.135 4.031,3.49 0.281,0.354 10 false ●

Procedure Part Name Code
Z101186

Z101188

Z101187

1 BACK DOOR WEATHERSTRIP 67881A (Click here) - -

● Non-reusable part - -

PROCEDURE

Hide 67881A 1.INSTALL BACK DOOR WEATHERSTRIP

a.
B630966C01
1.083,2.469 1.646,2.563 true 2.188,0.854 1.052,1.167 1.052,1.167 2.104,2.063 true 4.948,0.844 6.24,1.208 6.24,1.208 5.031,2.073 true 3.635,0.688 4.292,0.271 true 2.948,0.271 3.552,0.406 true 4.75,1.167 5.604,1.365 5.604,1.365 4.667,1.948 true 2.406,1.167 1.615,1.271 1.615,1.271 2.5,1.948 true 1.719,2.521 2.031,2.719 0.313,0.198 10 false *a 0.844,1.063 1.156,1.26 0.313,0.198 10 false *a 6.313,1.115 6.625,1.313 0.313,0.198 10 false *a 4.354,0.167 4.667,0.365 0.313,0.198 10 false *b 2.74,0.167 3.052,0.365 0.313,0.198 10 false *a 5.656,1.26 5.969,1.458 0.313,0.198 10 false *b 1.438,1.188 1.75,1.385 0.313,0.198 10 false *b
*a Paint Mark *b Mark Position


i.

Align the paint marks with the positions on the body flange and install a new back door weatherstrip.

Paint Mark (w/ Power Back Door)
Location Color
Center Yellow
Side White

Paint Mark (w/o Power Back Door)
Location Color
Center Light Blue
Side White

NOTICE:
·

Make sure to position the paint mark correctly during installation. Failure to do so may lead to water ingress.

·

After installation, check that the corners fit correctly.



HINT:

Make sure to install the parts of the back door weatherstrip near the joint and paint mark shown in the illustration first, and then install the corners.
