RM38T0EC _59 Vehicle Exterior _113746 DOOR / HATCH _0510838 BACK DOOR WEATHERSTRIP A

DOOR / HATCH  BACK DOOR WEATHERSTRIP  REMOVAL


CAUTION / NOTICE / HINT

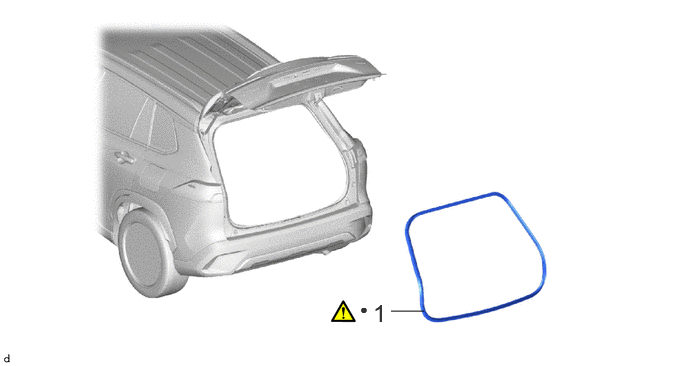

COMPONENTS (REMOVAL)
B633301N02
4.073,3.24 4.417,3.24 false 3.885,3.115 4.167,3.469 0.281,0.354 18 false 1 3.75,3.135 4.031,3.49 0.281,0.354 10 false ●

Procedure Part Name Code
Z101186

Z101188

Z101187

1 BACK DOOR WEATHERSTRIP 67881A (Click here) - -

● Non-reusable part - -

PROCEDURE

Hide 67881A 1.REMOVE BACK DOOR WEATHERSTRIP

a.
B633302C01
0.604,0.135 0.885,0.49 0.281,0.354 18 false i 4.24,0.135 4.646,0.521 0.406,0.385 18 false ii
V100155

Non-drying Sealer - -


i.

Remove the back door weatherstrip.


ii.

Remove any non-drying sealer on the body with non-residue solvent.
