DOOR / HATCH  REAR DOOR  ADJUSTMENT


CAUTION / NOTICE / HINT

B563260C01
0.74,0.094 1.052,0.25 0.313,0.156 10 false *a 2.51,0.083 2.823,0.24 0.313,0.156 10 false *b
*a Centering Bolt
*b Standard Bolt


HINT:
·

Centering bolts are used to install the door hinges to the vehicle body and door. The door cannot be adjusted with the centering bolts installed. Substitute the centering bolts with standard bolts when making adjustments.

·

The specified torque for standard bolts is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS



PROCEDURE

Hide 1.INSPECT REAR DOOR

a.

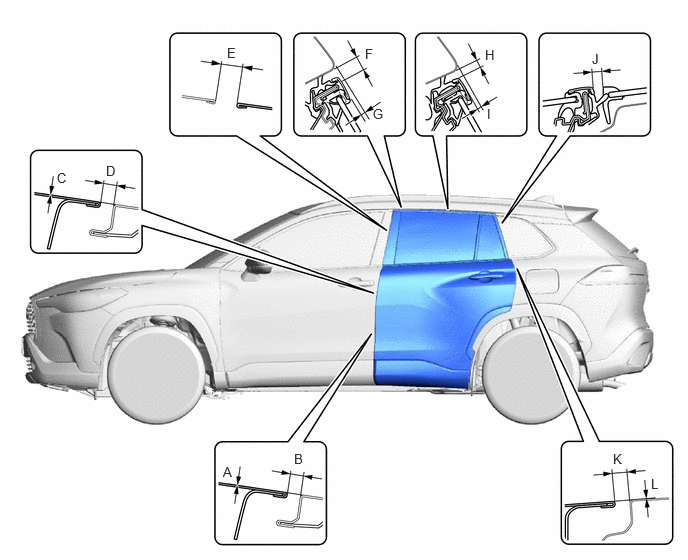

Check that the clearance measurements of areas A through L are within each standard range.

B588711N01
2.323,4.833 2.479,5.031 0.156,0.198 10 false A 3.063,4.698 3.219,4.896 0.156,0.198 10 false B 6.385,4.698 6.542,4.896 0.156,0.198 10 false K 6.781,4.958 6.938,5.156 0.156,0.198 10 false L 6.167,0.531 6.323,0.729 0.156,0.198 10 false J 5.073,1.104 5.229,1.302 0.156,0.198 10 false I 5.052,0.49 5.208,0.688 0.156,0.198 10 false H 3.802,0.479 3.958,0.677 0.156,0.198 10 false F 3.885,1.104 4.042,1.302 0.156,0.198 10 false G 2.365,0.469 2.521,0.667 0.156,0.198 10 false E 1.104,1.698 1.26,1.896 0.156,0.198 10 false D 0.594,1.771 0.75,1.969 0.156,0.198 10 false C

Standard Clearance
Area Measurement Area Measurement
A -1.2 to 1.2 mm
(-0.0472 to 0.0472 in.) 		B 3.3 to 5.7 mm
(0.130 to 0.224 in.)
C -1.2 to 1.2 mm
(-0.0472 to 0.0472 in.) 		D 3.3 to 5.7 mm
(0.130 to 0.224 in.)
E 2.4 to 6.4 mm
(0.0945 to 0.2520 in.) 		F 3.4 to 6.8 mm
(0.134 to 0.268 in.)
G 0.9 to 4.9 mm
(0.0354 to 0.1929 in.) 		H 3.3 to 6.7 mm
(0.130 to 0.224 in.)
I 0.8 to 4.8 mm
(0.0315 to 0.189 in.) 		J 4.3 to 8.3 mm
(0.169 to 0.327 in.)
K 2.7 to 5.7 mm
(0.106 to 0.224 in.) 		L -1.5 to 1.5 mm
(-0.0591 to 0.0591 in.)


Hide 2.ADJUST REAR DOOR

NOTICE:

Make sure to turn the ignition switch off before adjusting the door lock strikers.


a.
B587263

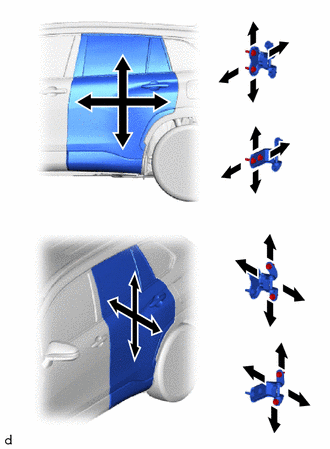

Using SST, loosen the 4 hinge bolts on the vehicle body and adjust the door position.

SST
09812-00020


b.

Tighten the 4 hinge bolts on the vehicle body after adjustment.

Torque:
26 N*m (265 kgf*cm, 19 ft.*lbf)


c.

Loosen the 4 hinge bolts on the door and adjust the door position.


d.

Tighten the 4 hinge bolts on the door after adjustment.

Torque:
21 N*m (214 kgf*cm, 15 ft.*lbf)


e.
B587264

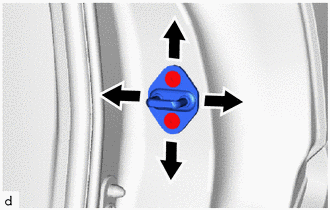

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.


f.

Using a brass bar and a hammer, hit the striker to adjust its position.


g.

Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.

Torque:
23 N*m (235 kgf*cm, 17 ft.*lbf)
