RM38T0EC _59 Vehicle Exterior _113746 DOOR / HATCH _0510834 FRONT DOOR OPENING TRIM WEATHERSTRIP A

DOOR / HATCH  FRONT DOOR OPENING TRIM WEATHERSTRIP  INSTALLATION


CAUTION / NOTICE / HINT

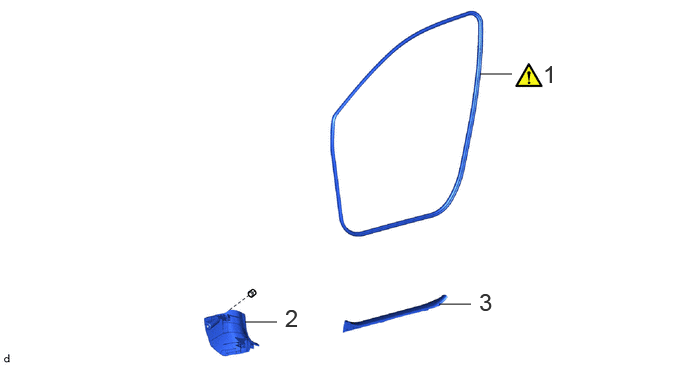

COMPONENTS (INSTALLATION)
B605954N01
5,0.771 5.333,0.771 false 2.552,3.354 2.885,3.354 false 4.573,3.167 4.906,3.167 false 5.656,0.625 5.938,0.979 0.281,0.354 18 false 1 2.969,3.167 3.25,3.521 0.281,0.354 18 false 2 4.99,3 5.271,3.354 0.281,0.354 18 false 3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FRONT DOOR OPENING TRIM WEATHERSTRIP 62312B (Click here) - -
2 COWL SIDE TRIM SUB-ASSEMBLY 62112A - - -
3 FRONT DOOR SCUFF PLATE 67914 - - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 62312B 1.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP

a.

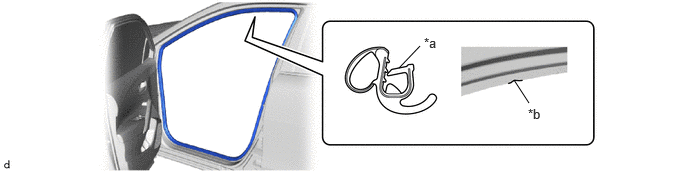

B587233C02
4.156,0.708 4.375,0.479 false 5.51,1.073 5.354,0.833 false 4.417,0.365 4.729,0.563 0.313,0.198 10 false *a 5.5,1.104 5.813,1.302 0.313,0.198 10 false *b
*a Paint Mark *b Cutout


i.

Align the paint mark on the front door opening trim weatherstrip with the cutout on the vehicle body, and install the front door opening trim weatherstrip.

NOTICE:
·

Make sure that the paint mark is aligned with the cutout when installing the front door opening trim weatherstrip, otherwise water ingress may occur.

·

After installation, check that the corners fit correctly.



HINT:
·

Make sure to install the part of the front door opening trim weatherstrip near the paint mark first.

·

The color of the paint marks on the front door opening trim weatherstrip LH and front door opening trim weatherstrip RH are different.

Paint Mark:
Location Color
for LH Side Orange
for RH Side Pink






Hide 62112A 2.INSTALL COWL SIDE TRIM SUB-ASSEMBLY

Hide 67914B 3.INSTALL FRONT DOOR SCUFF PLATE
