RM38T0EC _59 Vehicle Exterior _113746 DOOR / HATCH _0510833 FRONT DOOR N

DOOR / HATCH  FRONT DOOR  ADJUSTMENT


CAUTION / NOTICE / HINT

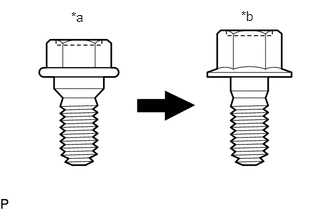

B563260C01
0.74,0.094 1.052,0.25 0.313,0.156 10 false *a 2.51,0.083 2.823,0.24 0.313,0.156 10 false *b
*a Centering Bolt
*b Standard Bolt


HINT:
·

Centering bolts are used to install the door hinges to the vehicle body and door. The door cannot be adjusted with the centering bolts installed. Substitute the centering bolts with standard bolts when making adjustments.

·

The specified torque for standard bolts is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS



PROCEDURE

Hide 1.INSPECT FRONT DOOR

a.

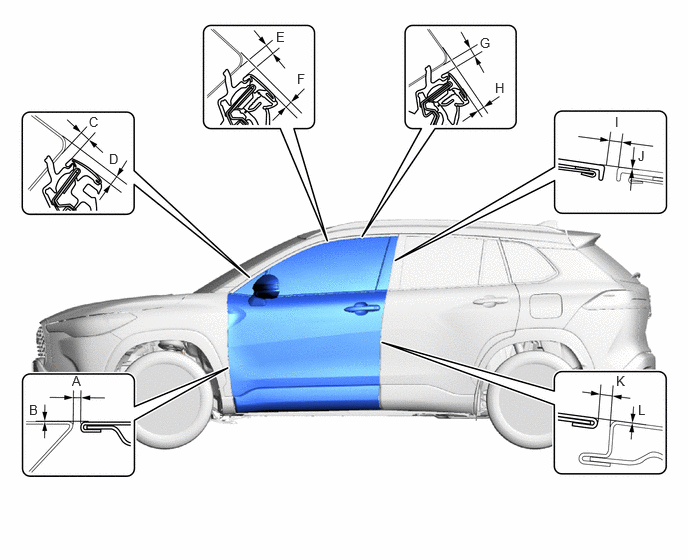

Check that the clearance measurements of areas A through L are within each standard range.

B588710N01
0.75,3.885 0.906,4.083 0.156,0.198 10 false A 0.302,4.188 0.458,4.385 0.156,0.198 10 false B 0.927,1.188 1.083,1.385 0.156,0.198 10 false C 1.135,1.573 1.292,1.771 0.156,0.198 10 false D 2.875,0.302 3.031,0.5 0.156,0.198 10 false E 3.094,0.74 3.25,0.938 0.156,0.198 10 false F 5,0.365 5.156,0.563 0.156,0.198 10 false G 5.156,0.833 5.313,1.031 0.156,0.198 10 false H 6.406,1.188 6.563,1.385 0.156,0.198 10 false I 6.646,1.542 6.802,1.74 0.156,0.198 10 false J 6.417,3.885 6.573,4.083 0.156,0.198 10 false K 6.646,4.188 6.802,4.385 0.156,0.198 10 false L

Standard Clearance
Area Measurement Area Measurement
A 3.2 to 5.6 mm
(0.126 to 0.220 in.) 		B -1.2 to 1.2 mm
(-0.0472 to 0.0472 in.)
C 3.4 to 6.8 mm
(0.134 to 0.268 in.) 		D 3.7 to 7.7 mm
(0.146 to 0.303 in.)
E 3.4 to 6.8 mm
(0.134 to 0.268 in.) 		F 1.0 to 5.0 mm
(0.0394 to 0.197 in.)
G 3.4 to 6.8 mm
(0.134 to 0.268 in.) 		H 2.0 to 6.0 mm
(0.0787 to 0.236 in.)
I 2.4 to 6.4 mm
(0.0945 to 0.2520 in.) 		J -2.0 to 2.0 mm
(-0.0787 to 0.0787 in.)
K 3.3 to 5.7 mm
(0.130 to 0.224 in.) 		L -1.2 to 1.2 mm
(-0.0472 to 0.0472 in.)


Hide 2.ADJUST FRONT DOOR

NOTICE:

Make sure to turn the ignition switch off before adjusting the door lock strikers.


a.

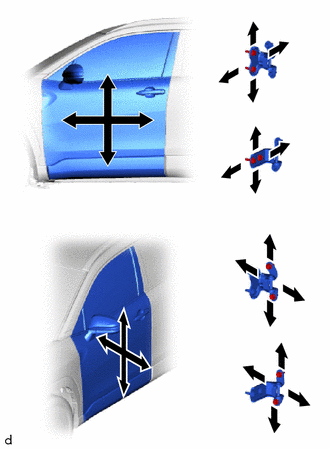

B587229

Using SST, loosen the 4 hinge bolts on the vehicle body and adjust the door position.

SST
09812-00020


b.

Tighten the 4 hinge bolts on the vehicle body after adjustment.

Torque:
26 N*m (265 kgf*cm, 19 ft.*lbf)


c.

Loosen the 4 hinge bolts on the door and adjust the door position.


d.

Tighten the 4 hinge bolts on the door after adjustment.

Torque:
21 N*m (214 kgf*cm, 15 ft.*lbf)


e.

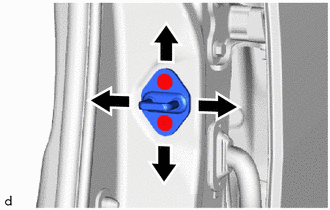

B587230

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.


f.

Using a brass bar and a hammer, hit the striker to adjust its position.


g.

Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.

Torque:
23 N*m (235 kgf*cm, 17 ft.*lbf)
