DOOR / HATCH  HOOD  ON-VEHICLE INSPECTION


PROCEDURE

Hide 53301 1.INSPECT HOOD SUB-ASSEMBLY

a.

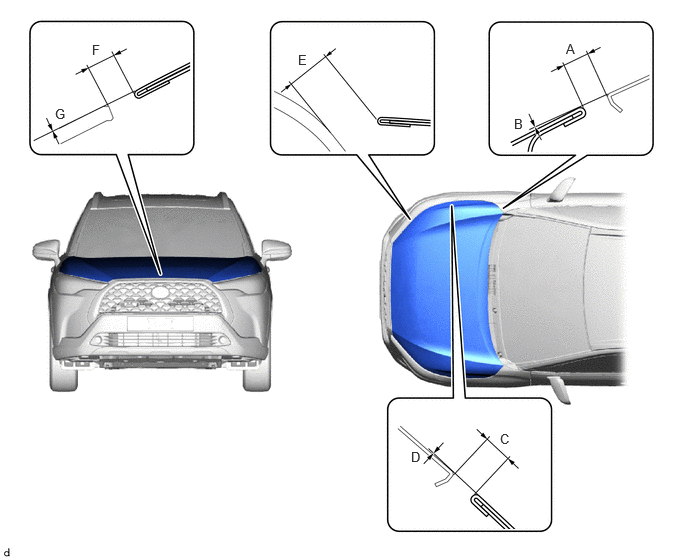

Check that the clearance measurements of areas A through G are within each standard range.

B586500N01
5.896,0.427 6.208,0.625 0.313,0.198 10 false A 5.354,1.208 5.667,1.406 0.313,0.198 10 false B 3.104,0.542 3.417,0.74 0.313,0.198 10 false E 0.958,0.438 1.271,0.635 0.313,0.198 10 false F 0.573,1.104 0.885,1.302 0.313,0.198 10 false G 5.208,4.49 5.521,4.688 0.313,0.198 10 false C 4.281,4.677 4.594,4.875 0.313,0.198 10 false D

Standard Clearance
Area Measurement Area Measurement
A 3.0 to 6.0 mm
(0.1181 to 0.2362 in.) 		B -1.5 to 1.5 mm
(-0.0591 to 0.0591 in.)
C 3.5 to 6.5 mm
(0.1378 to 0.2559 in.) 		D -1.5 to 1.5 mm
(-0.0591 to 0.0591 in.)
E 8.3 mm
(0.3268 in.) 		F 5.0 mm
(0.1969 in.)
G 0.0 mm
(0 in.) 		- -
