THEFT DETERRENT / KEYLESS ENTRY  SECURITY HORN ASSEMBLY  INSPECTION


PROCEDURE

Hide 86510A 1.INSPECT SECURITY HORN ASSEMBLY

a.
B363497C03
0.24,0.167 0.896,0.594 0.656,0.427 10 false *a

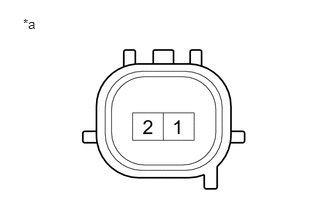

*a Component without harness connected
(Security Horn Assembly)


Check the operation.

i.

Apply battery voltage and check the operation of the security horn assembly.

OK:
Auxiliary Battery Connection Specified Condition
Auxiliary battery positive (+) → Terminal 1
Auxiliary battery negative (-) → Terminal 2 		Security horn assembly sounds


If the result is not as specified, replace the security horn assembly.
