ENGINE HOOD COURTESY SWITCH
G
THEFT DETERRENT / KEYLESS ENTRY ENGINE HOOD COURTESY SWITCH INSPECTION
PROCEDURE
53510G

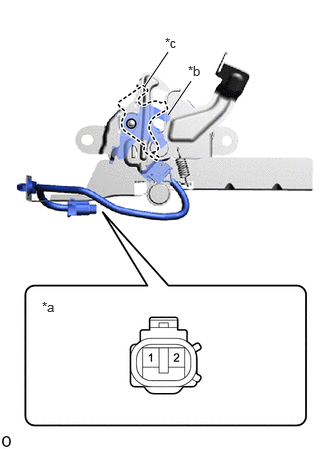

1.INSPECT HOOD LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
a.
1.51,0.896 1.75,0.542
true
1.75,1.198 1.99,0.844
true
0.438,3.115 0.75,3.313
0.313,0.198
10
false
*a
1.719,0.365 2.031,0.563
0.313,0.198
10
false
*c
1.958,0.656 2.271,0.854
0.313,0.198
10
false
*b
| *a | Component without harness connected
(Engine Hood Courtesy Switch (Hood Lock Assembly with Courtesy Light Switch)) |
| *b | Lock |
| *c | Unlock |
Check the resistance.
i.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Switch Condition Specified Condition 1 - 2 Locked Below 1 Ω 1 - 2 Unlocked 10 kΩ or higher
If the resistance is not as specified, replace the engine hood courtesy switch (hood lock assembly with courtesy light switch).
