MAINTENANCE TRANSMITTER BATTERY(w/o Smart Entry and Start System) REMOVAL

CAUTION / NOTICE / HINT

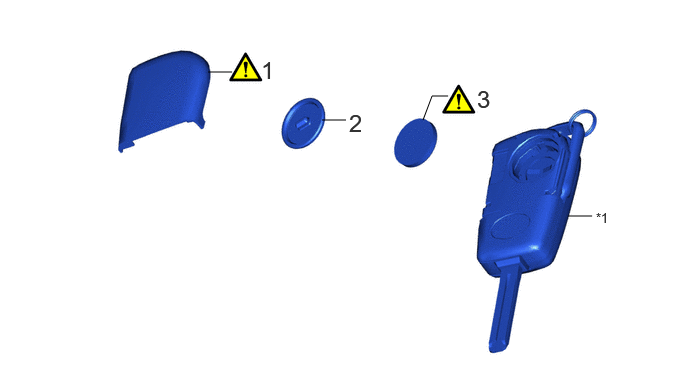

COMPONENTS (REMOVAL)

2.167,0.75 2.417,0.75 false 3.354,1.25 3.604,1.25 false 4.406,1.25 4.5,1 4.5,1 4.667,1 false 5.917,2.25 6.167,2.25 false 2.719,0.583 2.917,0.865 0.198,0.281 18 false 1 3.635,1.135 3.833,1.417 0.198,0.281 18 false 2 4.969,0.885 5.167,1.167 0.198,0.281 18 false 3 6.208,2.188 6.521,2.385 0.313,0.198 10 false *1

Procedure		Part Name Code
1	TRANSMITTER HOUSING COVER	89751A	(202201,999999,_V1,_104397,_0510796,RM1000000020B48_01_0004,)	-	-
2	TRANSMITTER BATTERY HOUSING COVER	8975B	-	-	-
3	TRANSMITTER BATTERY	89745A	(202201,999999,_V1,_104397,_0510796,RM1000000020B48_01_0002,)	-	-

DOOR CONTROL TRANSMITTER MODULE SET SUB-ASSEMBLY

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during door control transmitter assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Door control transmitter assembly	Code registration	Register a new recognition code	See Service Bulletin for the registration method
Door control transmitter assembly	Register a new recognition code	Wireless door lock control system (w/o Smart Key System)	(202201,999999,_58,_115226,_0510942,RM1000000020BTZ,)

PROCEDURE

Hide Display 89751A 1.REMOVE TRANSMITTER HOUSING COVER

Click here(

202201,999999,_58,_115226,_0510788,RM1000000020B3O_01_0007,)

Hide Display 8975B 2.REMOVE TRANSMITTER BATTERY HOUSING COVER

Click hereVehicle Interior>DOOR LOCK>DOOR CONTROL TRANSMITTER (w/o Smart Entry and Start System)>REMOVAL202201,999999,_58,_115226,_0510788,RM1000000020B3O_01_0006,

Hide Display 89745A 3.REMOVE TRANSMITTER BATTERY

0.552,0.167 0.833,0.521 0.281,0.354 18 false i

Using a screwdriver with its tip wrapped in protective tape, remove the transmitter battery.

NOTICE:: ·

Do not push the terminals with your finger.

·

Do not forcibly pry up the transmitter battery as the terminals may be damaged.

·

Do not touch the transmitter battery with wet hands. Moisture may cause rust.

·

Do not touch or move any components inside the transmitter housing case. It may interfere with proper operation.

·

When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical key transmitter sub-assembly from being damaged.
