RM38T0EC _V1 General _104397 MAINTENANCE _0510795 TRANSMITTER BATTERY(w/ Smart Entry and Start System) A

MAINTENANCE  TRANSMITTER BATTERY(w/ Smart Entry and Start System)  INSTALLATION


CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)
B572308N02
6.573,0.25 6.823,0.25 false 4.583,0.583 4.917,0.583 false 3.875,1.667 4.042,1.667 false 4.583,2.417 4.917,2.417 false 2.25,3.25 2.583,3.25 false 4.385,1.5 4.667,1.854 0.281,0.354 18 false 1 5.01,0.458 5.292,0.813 0.281,0.354 18 false 2 2.698,3.115 2.979,3.469 0.281,0.354 18 false 3 4.979,2.344 5.292,2.542 0.313,0.198 10 false *1 6.344,0.104 6.625,0.458 0.281,0.354 18 false 4

Procedure Part Name Code
Z101186

Z101188

Z101187

1 TRANSMITTER BATTERY 89745C (Click here) - -
2 TRANSMITTER HOUSING COVER - - - -
3 CUT KEY 69503B - - -
4 INSPECT TRANSMITTER LED ILLUMINATION - (Click here) - -

*1 TRANSMITTER HOUSING CASE - -

PROCEDURE

Hide 89745C 1.INSTALL TRANSMITTER BATTERY

Z101186

NOTICE:
·

Do not push the terminals with your finger.

·

Do not forcibly pry up the transmitter battery as the terminals may be damaged.

·

Do not touch the transmitter battery with wet hands. Moisture may cause rust.

·

Do not touch or move any components inside the transmitter housing case. It may interfere with proper operation.

·

When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical key transmitter sub-assembly from being damaged.




a.

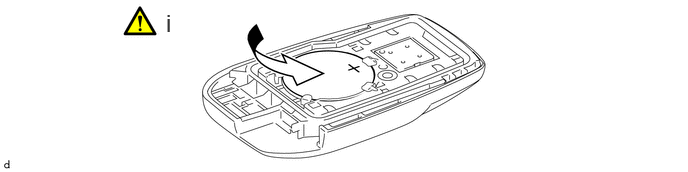

B572306N02
1.729,0.094 2.01,0.448 0.281,0.354 18 false i

i.

Install the transmitter battery.



Hide 2.INSTALL TRANSMITTER HOUSING COVER

Hide 69503B 3.INSTALL CUT KEY

Hide 4.INSPECT TRANSMITTER LED ILLUMINATION

Z101186

Click here(Click here)
