RM38T0EC _V1 General _104397 MAINTENANCE _0510795 TRANSMITTER BATTERY(w/ Smart Entry and Start System) A

MAINTENANCE TRANSMITTER BATTERY(w/ Smart Entry and Start System) REMOVAL

CAUTION / NOTICE / HINT

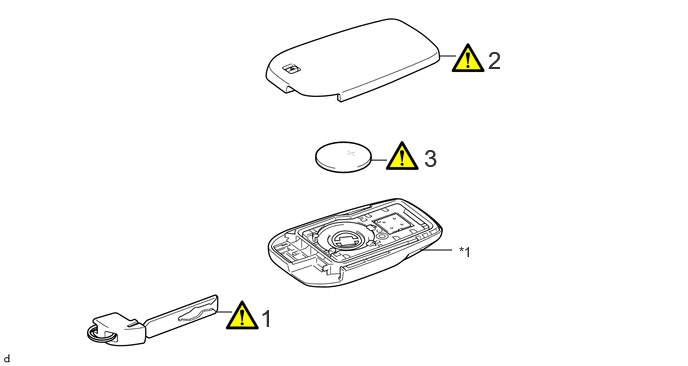

COMPONENTS (REMOVAL)

4.583,0.583 4.75,0.583 false 3.865,1.667 4.031,1.667 false 4.375,2.604 4.708,2.604 false 2.25,3.25 2.417,3.25 false 2.708,3.167 2.885,3.448 0.177,0.281 18 false 1 4.781,2.542 4.979,2.729 0.198,0.188 10 false *1 5.083,0.479 5.333,0.75 0.25,0.271 18 false 2 4.417,1.5 4.625,1.781 0.208,0.281 18 false 3

Procedure		Part Name Code
1	CUT KEY	69503B	(202201,999999,_V1,_104397,_0510795,RM1000000020B46_03_0003,)	-	-
2	TRANSMITTER HOUSING COVER	-	(202201,999999,_V1,_104397,_0510795,RM1000000020B46_03_0002,)	-	-
3	TRANSMITTER BATTERY	89745C	(202201,999999,_V1,_104397,_0510795,RM1000000020B46_03_0001,)	-	-

TRANSMITTER HOUSING CASE

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during electrical key transmitter sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Electrical key transmitter sub-assembly	Code registration	· Wireless door lock control system (w/ Smart Key System) · Smart key system (for Entry function) · Smart key system (for Start function) · Engine start function	See Service Bulletin for the registration method.

PROCEDURE

Hide Display 69503B 1.REMOVE CUT KEY

Click here(

202201,999999,_58,_115226,_0510787,RM1000000020B3J_03_0003,)

Hide Display 2.REMOVE TRANSMITTER HOUSING COVER

Click here(

202201,999999,_V1,_104397,_0510795,RM1000000020B46_03_0002,)

Hide Display 89745C 3.REMOVE TRANSMITTER BATTERY

NOTICE:: ·

Do not push the terminals with your finger.

·

Do not forcibly pry up the transmitter battery as the terminals may be damaged.

·

Do not touch the transmitter battery with wet hands. Moisture may cause rust.

·

Do not touch or move any components inside the transmitter housing case. It may interfere with proper operation.

·

When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical key transmitter sub-assembly from being damaged.

2.292,0.135 2.573,0.49 0.281,0.354 18 false i

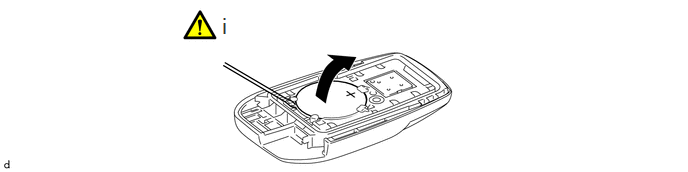

Using a screwdriver with its tip wrapped in protective tape, remove the transmitter battery.
