RM38T0EC _58 Vehicle Interior _115226 DOOR LOCK _0510793 BACK DOOR LOCK A

DOOR LOCK  BACK DOOR LOCK  INSTALLATION


CAUTION / NOTICE / HINT

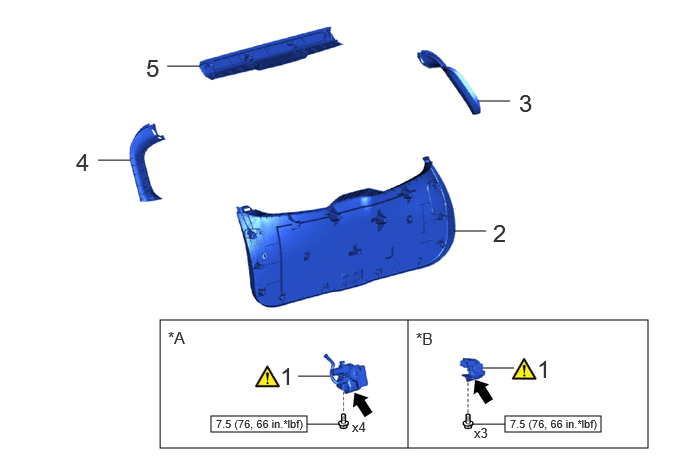

COMPONENTS (INSTALLATION)
B633888N01
1.667,3.333 6.75,4.667 5.083,1.333 5.26,4.333 6.26,4.5 1,0.167 2.198,4.333 3.198,4.5 1,0.167 3.104,3.917 3.438,3.917 false 5.021,3.833 5.354,3.833 false 4.729,2.406 5.063,2.406 false 4.979,1.052 5.313,1.052 false 1.021,1.667 1.354,1.667 false 1.74,0.688 2.073,0.688 false 4.25,4.667 4.25,3.333 false 3.198,4.417 3.531,4.417 false 4.927,4.417 5.26,4.417 false 5.594,3.698 5.875,4.052 0.281,0.354 18 false 1 5.135,2.281 5.417,2.635 0.281,0.354 18 false 2 5.406,0.927 5.688,1.281 0.281,0.354 18 false 3 0.792,1.542 1.073,1.896 0.281,0.354 18 false 4 2.917,3.771 3.198,4.125 0.281,0.354 18 false 1 3.667,4.365 3.979,4.563 0.313,0.198 10 false x4 4.938,4.427 5.25,4.625 0.313,0.198 10 false x3 1.521,0.563 1.802,0.917 0.281,0.354 18 false 5 1.75,3.417 2.125,3.656 0.375,0.24 12 false *A 4.333,3.427 4.708,3.667 0.375,0.24 12 false *B 5.313,4.344 6.344,4.594 1.031,0.25 8 false 7.5 (76, 66 in.*lbf) 2.25,4.344 3.281,4.594 1.031,0.25 8 false 7.5 (76, 66 in.*lbf)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY 69350P (Click here) - -
2 BACK DOOR TRIM PANEL ASSEMBLY 64780A - - -
3 BACK DOOR SIDE GARNISH RH 67937B - - -
4 BACK DOOR SIDE GARNISH LH 67938A - - -
5 BACK DOOR UPPER PANEL TRIM ASSEMBLY 64790B - - -

*A w/ Power Back Door *B w/o Power Back Door
V100146

N*m (kgf*cm, ft.*lbf): Specified torque
V100135

MP grease

PROCEDURE

Hide 69350P 1.INSTALL BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

Z101186

HINT:

Make sure to remove the string before installing a new back door lock with courtesy light switch assembly.

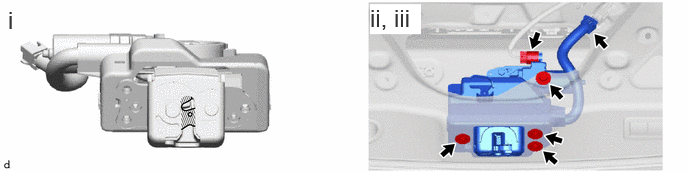

a.

w/ Power Back Door:

B587461C02
0.083,0.063 0.365,0.417 0.281,0.354 18 false i 3.854,0.042 4.385,0.354 0.531,0.313 18 true ii, iii
V100155

MP Grease - -


i.

Apply MP grease to the sliding parts of the back door lock with courtesy light switch assembly.


ii.

Install the back door lock with courtesy light switch assembly with the 4 bolts.

Torque:
7.5 N*m (76 kgf*cm, 66 in.*lbf)


iii.

Connect the 2 connectors.

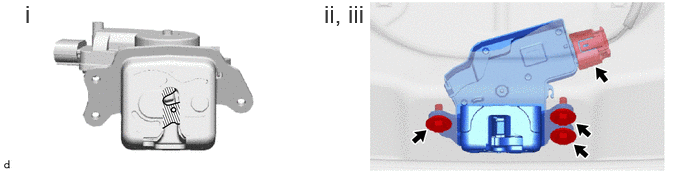

b.

w/o Power Back Door:

B587460C02
3.375,0 3.896,0.302 0.521,0.302 18 false ii, iii 0.26,0 0.781,0.302 0.521,0.302 18 false i
V100155

MP Grease - -


i.

Apply MP grease to the sliding parts of the back door lock with courtesy light switch assembly.


ii.

Install the back door lock with courtesy light switch assembly with the 3 bolts.

Torque:
7.5 N*m (76 kgf*cm, 66 in.*lbf)


iii.

Connect the connector.



Hide 64780A 2.INSTALL BACK DOOR TRIM PANEL ASSEMBLY

Hide 67937B 3.INSTALL BACK DOOR SIDE GARNISH RH

Hide 67938A 4.INSTALL BACK DOOR SIDE GARNISH LH

Hide 64790B 5.INSTALL BACK DOOR UPPER PANEL TRIM ASSEMBLY
