RM38T0EC _58 Vehicle Interior _115226 DOOR LOCK _0510793 BACK DOOR LOCK G

DOOR LOCK  BACK DOOR LOCK  INSPECTION


PROCEDURE

Hide 69350P 1.INSPECT BACK DOOR LOCK WITH COURTESY LIGHT SWITCH (w/o Power Back Door)

a.

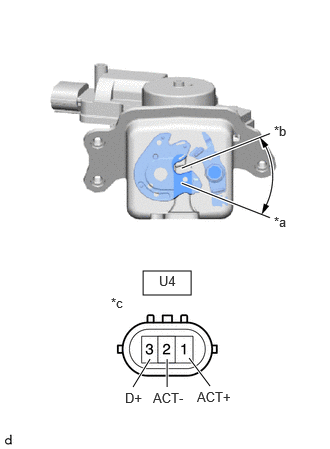

B528687C06
1.49,2.823 1.99,3.073 0.5,0.25 2.188,4.021 1.969,3.729 true 1.74,4.031 1.74,3.74 true 1.385,4.031 1.563,3.74 true 2.854,2.229 3.167,2.385 0.313,0.156 10 false *a 2.854,1.281 3.167,1.438 0.313,0.156 10 false *b 1.156,3.073 1.469,3.229 0.313,0.156 10 false *c 2.052,4.052 2.438,4.24 0.385,0.188 10 false ACT+ 1.594,4.063 1.969,4.25 0.375,0.188 10 false ACT- 1.302,4.063 1.688,4.25 0.385,0.188 10 false D+ 1.656,2.844 2.042,3.031 0.385,0.188 10 false U4
*a Unlock
*b Lock
*c Component without harness connected
(Back Door Lock with Courtesy Light Switch Assembly)


Check the operation of the door lock motor.

i.

Move the back door lock with courtesy light switch assembly to the lock position.


ii.

Apply auxiliary battery voltage to the back door lock with courtesy light switch assembly and check the operation of the door lock motor.

OK:
Measurement Condition Specified Condition
Auxiliary battery positive (+) → U4-1 (ACT+)
Auxiliary battery negative (-) → U4-2 (ACT-) 		Unlock


If the result is not as specified, replace the back door lock with courtesy light switch assembly.



b.

Check the operation of the door courtesy switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
U4-2 (ACT-) - U4-3 (D+) Lock 10 kΩ or higher
Unlock Below 1 Ω


If the result is not as specified, replace the back door lock with courtesy light switch assembly.



Hide 69350P 2.INSPECT BACK DOOR LOCK WITH COURTESY LIGHT SWITCH (w/ Power Back Door)

a.

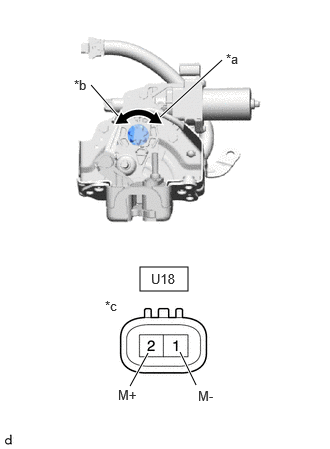

B528688C04
1.458,2.781 1.958,3.031 0.5,0.25 1.667,1.219 2.313,0.625 true 1.229,1.208 0.948,0.885 true 2.042,4.01 1.875,3.667 true 1.354,4.021 1.542,3.677 true 2.354,0.531 2.667,0.688 0.313,0.156 10 false *a 0.771,0.802 1.083,0.958 0.313,0.156 10 false *b 1.094,3.104 1.406,3.26 0.313,0.156 10 false *c 2.063,4.042 2.375,4.198 0.313,0.156 10 false M- 1.229,4.031 1.542,4.188 0.313,0.156 10 false M+ 1.573,2.823 1.885,2.979 0.313,0.156 10 false U18
*a Clockwise
*b Counterclockwise
*c Component without harness connected
(Back Door Lock with Courtesy Light Switch Assembly)


Check the operation of the door lock motor.

i.

Apply auxiliary battery voltage to the back door lock with courtesy light switch assembly and check the operation of the door lock motor.

OK:
Measurement Condition Specified Condition
Auxiliary battery positive (+) → U18-2 (M+)
Auxiliary battery negative (-) → U18-1 (M-) 		Latch turns to full-latch position (clockwise rotation)
Auxiliary battery positive (+) → U18-1 (M-)
Auxiliary battery negative (-) → U18-2 (M+) 		Latch turns to open-latch position (counterclockwise rotation)

If the result is not as specified, replace the back door lock with courtesy light switch assembly.



b.

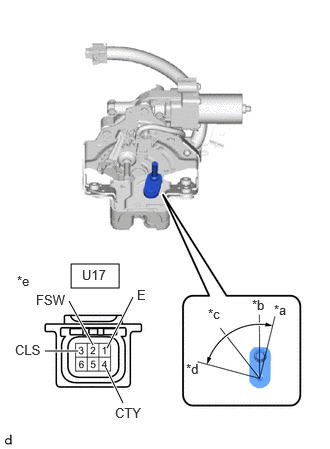

B528689C07
0.74,2.75 1.24,3 0.5,0.25 1.385,3.094 1.115,3.625 true 0.719,3.135 0.969,3.594 true 0.469,3.656 0.813,3.656 true 1.104,3.833 1.281,4.198 true 2.854,3.146 3.167,3.302 0.313,0.156 10 false *a 2.625,3.094 2.938,3.25 0.313,0.156 10 false *b 2.167,3.188 2.479,3.344 0.313,0.156 10 false *c 1.427,2.99 1.74,3.146 0.313,0.156 10 false E 0.177,2.844 0.5,3.031 0.323,0.188 10 false *e 1.938,3.76 2.25,3.917 0.313,0.156 10 false *d 0.375,3.042 0.729,3.208 0.354,0.167 10 false FSW 0.156,3.563 0.469,3.74 0.313,0.177 10 false CLS 1.198,4.219 1.51,4.396 0.313,0.177 10 false CTY 0.854,2.781 1.208,2.948 0.354,0.167 10 false U17
*a Over-latch
*b Full-latch
*c Half-latch
*d Open-latch
*e Component without harness connected
(Back Door Lock with Courtesy Light Switch Assembly)


Check the operation of the latch switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance
Tester Connection Condition Specified Condition
U17-3 (CLS) - U17-1 (E) Open-latch Below 1 Ω
Open-latch → Half-latch Below 1 Ω → 10 kΩ or higher
Half-latch 10 kΩ or higher
Full-latch
Over-latch 10 kΩ or higher → Below 1 Ω → 10 kΩ or higher

Standard Resistance
Tester Connection Condition Specified Condition
U17-3 (CLS) - U17-1 (E) Full-latch 10 kΩ or higher
Half-latch
Half-latch → Open-latch 10 kΩ or higher → Below 1 Ω
Open-latch Below 1 Ω

If the result is not as specified, replace the back door lock with courtesy light switch assembly.



c.

Check the operation of the pawl switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance
Tester Connection Condition Specified Condition
U17-2 (FSW) - U17-1 (E) Open-latch 10 kΩ or higher
Open-latch → Half-latch 10 kΩ or higher → Below 1 Ω → 10 kΩ or higher
Half-latch 10 kΩ or higher
Half-latch → Full-latch 10 kΩ or higher → Below 1 Ω → 10 kΩ or higher
Full-latch 10 kΩ or higher

If the result is not as specified, replace the back door lock with courtesy light switch assembly.



d.

Check the operation of the back door courtesy switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance
Tester Connection Condition Specified Condition
U17-4 (CTY) - U17-1 (E) Open-latch Below 1 Ω
Half-latch
Half-latch → Full-latch Below 1 Ω → 10 kΩ or higher
Full-latch 10 kΩ or higher
Over-latch

If the result is not as specified, replace the back door lock with courtesy light switch assembly.



e.
B528690C03
1.49,2.865 1.99,3.115 0.5,0.25 1.531,1.51 2.365,0.854 true 1.667,1.792 2.333,2.177 true 1.906,3.646 2.292,3.25 true 1.208,4.156 1.615,3.844 true 2.438,0.76 2.75,0.917 0.313,0.156 10 false *a 2.385,2.104 2.698,2.26 0.313,0.156 10 false *b 1,3.115 1.313,3.271 0.313,0.156 10 false *c 2.333,3.167 2.646,3.323 0.313,0.156 10 false E 1.01,4.177 1.375,4.365 0.365,0.188 10 false OPN 1.615,2.896 1.927,3.052 0.313,0.156 10 false U17
*a Selector Switch
*b Selector Gear
*c Component without harness connected
(Back Door Lock with Courtesy Light Switch Assembly)


Check the operation of the selector switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance
Tester Connection Condition Specified Condition
U17-6 (OPN) - U17-1 (E) Selector Switch ON Below 1 Ω
Selector Switch OFF 10 kΩ or higher

If the result is not as specified, replace the back door lock with courtesy light switch assembly.
