RM38T0EC _58 Vehicle Interior _115226 DOOR LOCK _0510792 REAR DOOR LOCK G

DOOR LOCK  REAR DOOR LOCK  INSPECTION


PROCEDURE

Hide 69060A 1.INSPECT REAR DOOR LOCK WITH MOTOR ASSEMBLY LH

a.

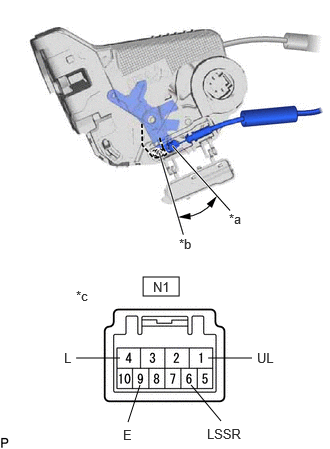

B544817C02
1.49,2.885 1.865,3.083 0.375,0.198 0.792,3.729 1.25,3.729 false 2.167,3.729 2.625,3.729 false 1.333,4.396 1.458,4.01 false 1.99,4.01 2.302,4.385 false 2.385,2.198 2.698,2.354 0.313,0.156 10 false *a 1.865,2.458 2.177,2.615 0.313,0.156 10 false *b 0.792,3 1.104,3.156 0.313,0.156 10 false *c 0.667,3.646 0.833,3.906 0.167,0.26 10 false L 2.677,3.646 2.906,3.875 0.229,0.229 10 false UL 2.156,4.438 2.844,4.646 0.688,0.208 10 false LSSR 1.281,4.448 1.51,4.646 0.229,0.198 10 false E 1.594,2.906 2.281,3.115 0.688,0.208 10 false N1
*a Unlock
*b Lock
*c Component without harness connected
(Rear Door Lock with Motor Assembly LH)


Check the door lock motor operation.

i.

Apply auxiliary battery voltage to the motor connector and check the operation of the door lock motor.

OK:
Measurement Condition Specified Condition
Auxiliary battery positive (+) → N1-4 (L)
Auxiliary battery negative (-) → N1-1 (UL) 		Lock
Auxiliary battery positive (+) → N1-1 (UL)
Auxiliary battery negative (-) → N1-4 (L) 		Unlock


If the result is not as specified, replace the rear door lock with motor assembly LH.



b.

Check the operation of the door unlock detection switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N1-6 (LSSR) - N1-9 (E) Lock 10 kΩ or higher
Unlock Below 1 Ω


If the result is not as specified, replace the rear door lock with motor assembly LH.



Hide 69050A 2.INSPECT REAR DOOR LOCK WITH MOTOR ASSEMBLY RH

a.
B544818C02
1.469,2.875 1.875,3.146 0.406,0.271 2.167,3.719 2.594,3.719 false 0.823,3.719 1.25,3.719 false 1.344,4.375 1.458,4.021 false 1.969,4.01 2.177,4.375 false 0.833,2.25 1.146,2.406 0.313,0.156 10 false *a 1.406,2.542 1.719,2.698 0.313,0.156 10 false *b 0.813,3.052 1.125,3.208 0.313,0.156 10 false *c 2.052,4.427 2.594,4.594 0.542,0.167 10 false LSSR 2.635,3.646 2.948,3.927 0.313,0.281 10 false UL 1.302,4.427 1.521,4.615 0.219,0.188 10 false E 0.698,3.646 0.917,3.833 0.219,0.188 10 false L 1.573,2.927 1.854,3.094 0.281,0.167 10 false M1
*a Unlock
*b Lock
*c Component without harness connected
(Rear Door Lock with Motor Assembly RH)


Check the door lock motor operation.

i.

Apply auxiliary battery voltage to the motor connector and check the operation of the door lock motor.

OK:
Measurement Condition Specified Condition
Auxiliary battery positive (+) → M1-4 (L)
Auxiliary battery negative (-) → M1-1 (UL) 		Lock
Auxiliary battery positive (+) → M1-1 (UL)
Auxiliary battery negative (-) → M1-4 (L) 		Unlock


If the result is not as specified, replace the rear door lock with motor assembly RH.



b.

Check the operation of the unlock detection switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
M1-6 (LSSR) - M1-9 (E) Lock 10 kΩ or higher
Unlock Below 1 Ω


If the result is not as specified, replace the rear door lock with motor assembly RH.
