RM38T0EC _58 Vehicle Interior _115226 DOOR LOCK _0510791 FRONT DOOR LOCK G

DOOR LOCK  FRONT DOOR LOCK  INSPECTION


PROCEDURE

Hide 69040A 1.INSPECT FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH

a.

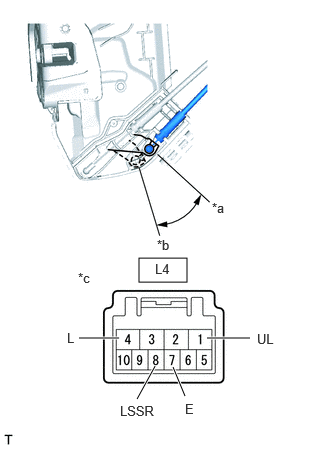

B380493C06
1.448,2.688 1.948,2.938 0.5,0.25 1.24,3.521 0.823,3.521 true 2.156,3.521 2.604,3.521 true 1.802,3.823 1.927,4.125 true 1.615,3.813 1.427,4.156 true 2.208,2.083 2.521,2.24 0.313,0.156 10 false *a 1.635,2.469 1.948,2.625 0.313,0.156 10 false *b 0.813,2.813 1.125,2.969 0.313,0.156 10 false *c 0.698,3.438 0.854,3.635 0.156,0.198 10 false L 2.677,3.448 2.99,3.646 0.313,0.198 10 false UL 1.927,4.177 2.083,4.375 0.156,0.198 10 false E 1.25,4.198 1.865,4.396 0.615,0.198 10 false LSSR 1.615,2.719 1.823,2.927 0.208,0.208 10 false L4
*a Unlock
*b Lock
*c Component without harness connected
(Front Door Lock with Motor Assembly LH)


Check the door lock motor operation.

i.

Apply auxiliary battery voltage to the motor connector and check the operation of the door lock motor.

OK:
Measurement Condition Specified Condition
Auxiliary battery positive (+) → L4-4 (L)
Auxiliary battery negative (-) → L4-1 (UL) 		Lock
Auxiliary battery positive (+) → L4-1 (UL)
Auxiliary battery negative (-) → L4-4 (L) 		Unlock


If the result is not as specified, replace the front door lock with motor assembly LH.



b.

Check the operation of the door unlock detection switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
L4-7 (E) - L4-8 (LSSR) Lock 10 kΩ or higher
Unlock Below 1 Ω


If the result is not as specified, replace the front door lock with motor assembly LH.



c.

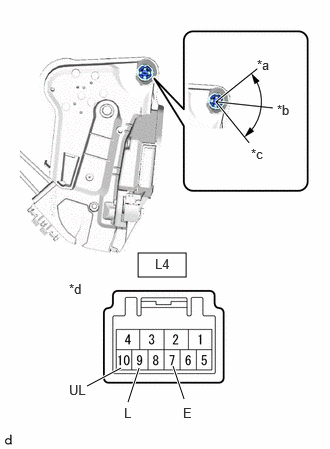

B530925C04
1.438,2.635 1.938,2.885 0.5,0.25 1.333,4.188 1.448,3.833 true 1.802,3.813 1.917,4.156 true 1.26,3.833 0.906,4.021 true 2.677,0.594 2.99,0.792 0.313,0.198 10 false *a 2.885,1.063 3.198,1.26 0.313,0.198 10 false *b 2.615,1.521 2.927,1.719 0.313,0.198 10 false *c 0.719,2.927 1.031,3.125 0.313,0.198 10 false *d 1.292,4.219 1.448,4.417 0.156,0.198 10 false L 1.906,4.219 2.063,4.417 0.156,0.198 10 false E 0.719,3.979 1.031,4.177 0.313,0.198 10 false UL 1.615,2.667 1.927,2.865 0.313,0.198 10 false L4
*a Unlock
*b Neutral
*c Lock
*d Component without harness connected
(Front Door Lock with Motor Assembly LH)


Check the resistance of the door key lock and unlock switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
L4-9 (L) - L4-7 (E) Lock Below 1 Ω
Neutral 10 kΩ or higher
L4-10 (UL) - L4-7 (E) Unlock Below 1 Ω
Neutral 10 kΩ or higher


If the result is not as specified, replace the front door lock with motor assembly LH.



Hide 69030A 2.INSPECT FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH

a.
B340409C36
1.458,2.677 1.958,2.927 0.5,0.25 1.24,3.521 0.792,3.521 true 2.167,3.521 2.563,3.521 true 1.938,4.177 1.75,3.823 true 1.594,3.813 1.375,4.167 true 1.115,2.052 1.427,2.25 0.313,0.198 10 false *a 1.698,2.438 2.01,2.635 0.313,0.198 10 false *b 0.844,2.854 1.156,3.052 0.313,0.198 10 false *c 0.688,3.448 0.844,3.646 0.156,0.198 10 false L 2.646,3.448 2.958,3.646 0.313,0.198 10 false UL 1.844,4.229 2.458,4.427 0.615,0.198 10 false LSSR 1.292,4.208 1.448,4.406 0.156,0.198 10 false E 1.625,2.708 1.938,2.906 0.313,0.198 10 false K5
*a Unlock
*b Lock
*c Component without harness connected
(Front Door Lock with Motor Assembly RH)


Check the door lock motor operation.

i.

Apply auxiliary battery voltage to the motor connector and check the operation of the door lock motor.

OK:
Measurement Condition Specified Condition
Auxiliary battery positive (+) → K5-4 (L)
Auxiliary battery negative (-) → K5-1 (UL) 		Lock
Auxiliary battery positive (+) → K5-1 (UL)
Auxiliary battery negative (-) → K5-4 (L) 		Unlock


If the result is not as specified, replace the front door lock with motor assembly RH.



b.

Check the operation of the door unlock detection switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
K5-7 (LSSR) - K5-8 (E) Lock 10 kΩ or higher
Unlock Below 1 Ω


If the result is not as specified, replace the front door lock with motor assembly RH.
