DOOR LOCK  UNLOCK WARNING SWITCH  INSPECTION

2.969,1.135 3.385,1.385 0.417,0.25 1.917,1.917 2.385,1.719 true 2.615,1.719 3,1.917 true 1.781,1.521 1.938,1.667 0.156,0.146 10 false *a 0.229,0.135 0.438,0.323 0.208,0.188 10 false *b 0.25,0.865 0.458,1.052 0.208,0.188 10 false *c 1.615,1.823 2.073,2.021 0.458,0.198 10 false UN- 3.021,1.823 3.385,2.073 0.365,0.25 10 false UN+ 3.073,1.177 3.333,1.354 0.26,0.177 10 false I13

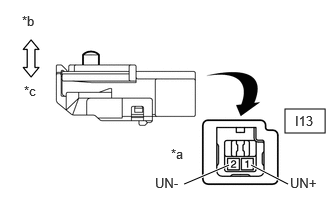

*a	Component without harness connected (Unlock Warning Switch Assembly)
*b	Switch not pushed
*c	Switch pushed

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
I13-1 (UN+) - I13-2 (UN-)	Switch not pushed (Key removed)	10 kΩ or higher
I13-1 (UN+) - I13-2 (UN-)	Switch pushed (Key inserted)	Below 1 Ω

If the result is not as specified, replace the unlock warning switch assembly.
