RM38T0EC _58 Vehicle Interior _115226 DOOR LOCK _0510790 UNLOCK WARNING SWITCH A

DOOR LOCK UNLOCK WARNING SWITCH REMOVAL

CAUTION / NOTICE / HINT

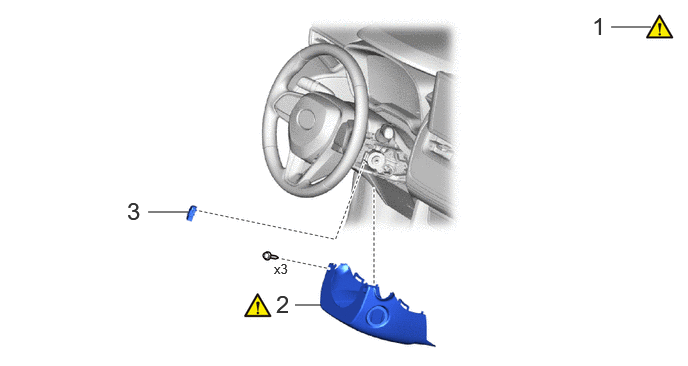

COMPONENTS (REMOVAL)

3.073,3.177 3.344,3.177 false 1.542,2.208 1.958,2.208 false 6.365,0.281 6.781,0.281 false 2.875,3.021 3.156,3.375 0.281,0.354 18 false 2 1.323,2.052 1.604,2.406 0.281,0.354 18 false 3 2.854,2.719 3.167,2.917 0.313,0.198 10 false x3 6.167,0.125 6.448,0.479 0.281,0.354 18 false 1

Procedure		Part Name Code
1	STEERING WHEEL POSITION	-	(202201,999999,_58,_115226,_0510790,RM1000000020B3S_01_0003,)	-	-
2	LOWER STEERING COLUMN COVER	45287	(202201,999999,_58,_115226,_0510790,RM1000000020B3S_01_0002,)	-	-
3	UNLOCK WARNING SWITCH ASSEMBLY	84052	-	-	-

PROCEDURE

Hide Display 1.ADJUST STEERING WHEEL POSITION

Click here(

202201,999999,_59,_114146,_0505964,RM100000001ZPJB_01_0026,)

Hide Display 45287 2.REMOVE LOWER STEERING COLUMN COVER

Click here(

202201,999999,_59,_114146,_0505964,RM100000001ZPJB_01_0022,)

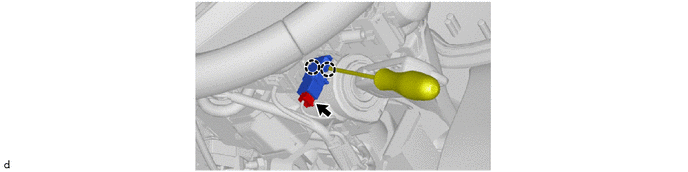

Hide Display 84052 3.REMOVE UNLOCK WARNING SWITCH ASSEMBLY
