RM38T0EC _58 Vehicle Interior _115226 DOOR LOCK _0510788 DOOR CONTROL TRANSMITTER(w/o Smart Entry and Start System) A

DOOR LOCK  DOOR CONTROL TRANSMITTER(w/o Smart Entry and Start System)  REMOVAL


CAUTION / NOTICE / HINT

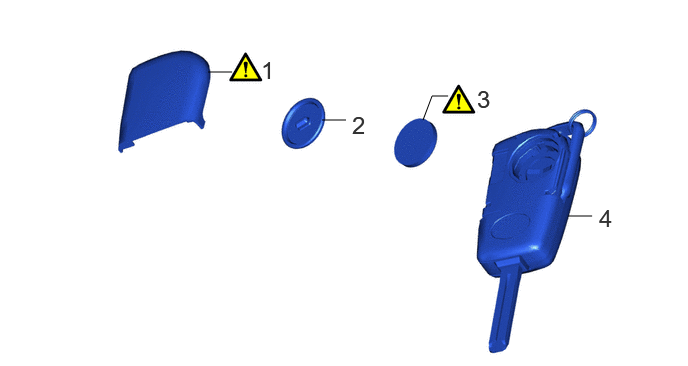

COMPONENTS (REMOVAL)
B570142N07
2.167,0.75 2.417,0.75 false 3.354,1.25 3.604,1.25 false 4.406,1.25 4.5,1 4.5,1 4.667,1 false 5.917,2.25 6.167,2.25 false 2.719,0.583 2.917,0.865 0.198,0.281 18 false 1 6.24,2.125 6.438,2.406 0.198,0.281 18 false 4 4.969,0.885 5.167,1.167 0.198,0.281 18 false 3 3.667,1.156 3.865,1.438 0.198,0.281 18 false 2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 TRANSMITTER HOUSING COVER 89751A (Click here) - -
2 TRANSMITTER BATTERY HOUSING COVER 8975B - - -
3 TRANSMITTER BATTERY 89745A (Click here) - -
4 DOOR CONTROL TRANSMITTER MODULE SET SUB-ASSEMBLY 89070F - - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during door control transmitter assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Door control transmitter assembly Code registration Register a new recognition code See Service Bulletin for the registration method
Register a new recognition code Wireless door lock control system (w/o Smart Key System) (Click here)

PROCEDURE

Hide 89751A 1.REMOVE TRANSMITTER HOUSING COVER

a.
B570143N01
0.531,0.156 0.667,0.458 0.135,0.302 18 false i

i.

Using a screwdriver with its tip wrapped in protective tape, remove the transmitter housing cover.

NOTICE:

Do not use excessive force when prying apart the transmitter housing cover.




Hide 8975B 2.REMOVE TRANSMITTER BATTERY HOUSING COVER

a.
B570144


Hide 89745A 3.REMOVE TRANSMITTER BATTERY

Z101186

Click here(Click here)

Hide 89070F 4.REMOVE DOOR CONTROL TRANSMITTER MODULE SET SUB-ASSEMBLY
