DOOR LOCK DOOR CONTROL TRANSMITTER(w/o Smart Entry and Start System) INSTALLATION

CAUTION / NOTICE / HINT

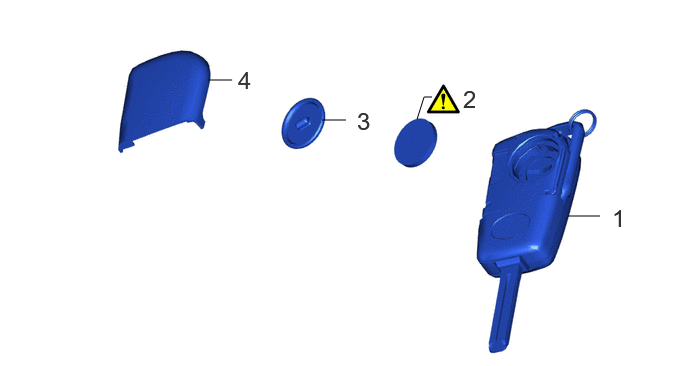

COMPONENTS (INSTALLATION)

2.167,0.833 2.417,0.833 false 3.354,1.25 3.604,1.25 false 4.344,1.24 4.417,1.01 4.417,1.01 4.5,1.01 false 5.917,2.25 6.25,2.25 false 3.719,1.115 4,1.469 0.281,0.354 18 false 3 4.823,0.885 5.104,1.24 0.281,0.354 18 false 2 6.375,2.125 6.573,2.438 0.198,0.313 18 false 1 2.479,0.688 2.76,1.042 0.281,0.354 18 false 4

Procedure		Part Name Code
1	DOOR CONTROL TRANSMITTER MODULE SET SUB-ASSEMBLY	89070F	-	-	-
2	TRANSMITTER BATTERY	89745A	(202201,999999,_58,_115226,_0510788,RM1000000020B3M_01_0005,)	-	-
3	TRANSMITTER BATTERY HOUSING COVER	8975B	-	-	-
4	TRANSMITTER HOUSING COVER	89751A	-	-	-

PROCEDURE

Hide Display 89070F 1.INSTALL DOOR CONTROL TRANSMITTER MODULE SET SUB-ASSEMBLY

Hide Display 89745A 2.INSTALL TRANSMITTER BATTERY

Click here(

202201,999999,_V1,_104397,_0510796,RM1000000020B49_01_0004,)

Hide Display 8975B 3.INSTALL TRANSMITTER BATTERY HOUSING COVER

Hide Display 89751A 4.INSTALL TRANSMITTER HOUSING COVER
