DOOR LOCK DOOR CONTROL TRANSMITTER(w/ Smart Entry and Start System) INSTALLATION

CAUTION / NOTICE / HINT

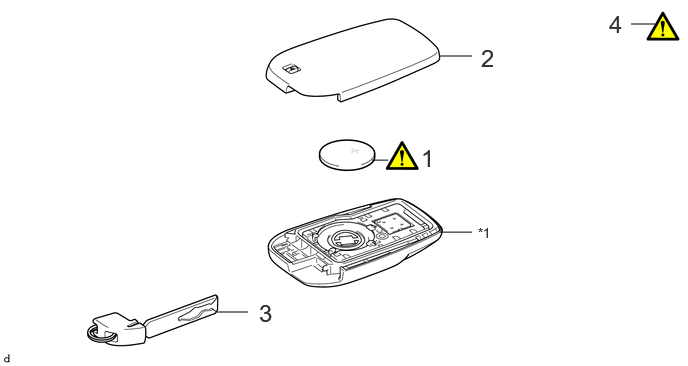

COMPONENTS (INSTALLATION)

6.573,0.25 6.823,0.25 false 4.583,0.583 4.917,0.583 false 3.875,1.667 4.042,1.667 false 4.583,2.417 4.917,2.417 false 2.25,3.25 2.583,3.25 false 4.385,1.5 4.667,1.854 0.281,0.354 18 false 1 5.01,0.458 5.292,0.813 0.281,0.354 18 false 2 2.698,3.115 2.979,3.469 0.281,0.354 18 false 3 4.979,2.344 5.292,2.542 0.313,0.198 10 false *1 6.344,0.104 6.625,0.458 0.281,0.354 18 false 4

Procedure		Part Name Code
1	TRANSMITTER BATTERY	89745C	(202201,999999,_58,_115226,_0510787,RM1000000020B3L_05_0004,)	-	-
2	TRANSMITTER HOUSING COVER	-	-	-	-
3	CUT KEY	69503B	-	-	-
4	INSPECT TRANSMITTER LED ILLUMINATION	-	(202201,999999,_58,_115226,_0510787,RM1000000020B3L_05_0001,)	-	-

TRANSMITTER HOUSING CASE

PROCEDURE

Hide Display 89745C 1.INSTALL TRANSMITTER BATTERY

Click here(

202201,999999,_V1,_104397,_0510795,RM1000000020B47_03_0004,)

Hide Display 2.INSTALL TRANSMITTER HOUSING COVER

Hide Display 69503B 3.INSTALL CUT KEY

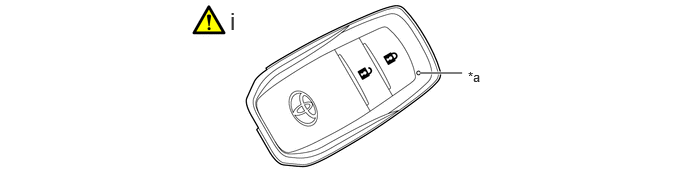

Hide Display 4.INSPECT TRANSMITTER LED ILLUMINATION

4.375,0.76 4.813,0.76 true 2.396,0.073 2.677,0.427 0.281,0.354 18 false i 4.875,0.719 5.188,0.917 0.313,0.198 10 false *a

LED

Press one of the transmitter switches and check that the LED illuminates.

OK:: Transmitter LED illuminates when a switch is pressed.
