RM38T0EC _54 Brake _112607 PARKING BRAKE _0510715 ELECTRIC PARKING BRAKE SWITCH A

PARKING BRAKE ELECTRIC PARKING BRAKE SWITCH INSTALLATION

CAUTION / NOTICE / HINT

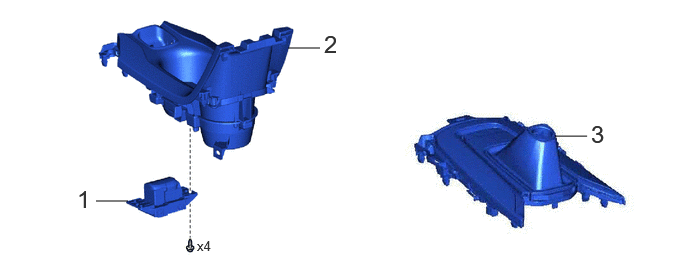

COMPONENTS (INSTALLATION)

3,0.5 3.333,0.5 false 1,2.094 1.333,2.094 false 5.781,1.417 6.115,1.417 false 6.156,1.25 6.396,1.573 0.24,0.323 18 false 3 3.375,0.313 3.615,0.635 0.24,0.323 18 false 2 0.802,1.927 1.042,2.25 0.24,0.323 18 false 1 2.052,2.479 2.365,2.677 0.313,0.198 10 false x4

Procedure		Part Name Code
1	COMBINATION SWITCH ASSEMBLY	84390B	-	-	-
2	REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY	-	-	-	-
3	POSITION INDICATOR HOUSING ASSEMBLY	35970F	-	-	-

PROCEDURE

Hide Display 84390B 1.INSTALL ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

Hide Display 2.INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION202201,202307,_58,_112291,_0501086,RM100000001Z4VM_01_0110,202307,999999,_58,_112291,_0501086,RM100000002BHCI_01_0082,

Hide Display 35970F 3.INSTALL POSITION INDICATOR HOUSING ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION202201,202307,_58,_112291,_0501086,RM100000001Z4VM,202307,999999,_58,_112291,_0501086,RM100000002BHCI,
