RM38T0EC _54 Brake _112607 PARKING BRAKE _0510715 ELECTRIC PARKING BRAKE SWITCH A

PARKING BRAKE ELECTRIC PARKING BRAKE SWITCH REMOVAL

CAUTION / NOTICE / HINT

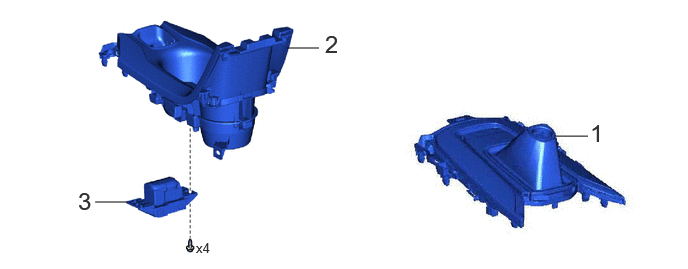

COMPONENTS (REMOVAL)

5.792,1.417 6.125,1.417 false 2.99,0.5 3.323,0.5 false 0.99,2.104 1.323,2.104 false 6.146,1.24 6.427,1.594 0.281,0.354 18 false 1 3.385,0.313 3.667,0.667 0.281,0.354 18 false 2 0.813,1.948 1.094,2.302 0.281,0.354 18 false 3 2.042,2.5 2.354,2.698 0.313,0.198 10 false x4

Procedure		Part Name Code
1	POSITION INDICATOR HOUSING ASSEMBLY	35970F	-	-	-
2	REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY	-	-	-	-
3	ELECTRIC PARKING BRAKE SWITCH ASSEMBLY	84390B	-	-	-

PROCEDURE

Hide Display 35970F 1.REMOVE POSITION INDICATOR HOUSING ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202201,202307,_58,_112291,_0501086,RM100000001Z4VL,202307,999999,_58,_112291,_0501086,RM100000002BHCH,

Hide Display 2.REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202201,202307,_58,_112291,_0501086,RM100000001Z4VL_01_0073,202307,999999,_58,_112291,_0501086,RM100000002BHCH_01_0063,

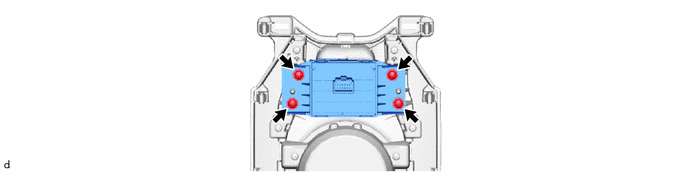

Hide Display 84390B 3.REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY
