PARKING BRAKE  ELECTRIC PARKING BRAKE ACTUATOR  INSTALLATION


CAUTION / NOTICE / HINT

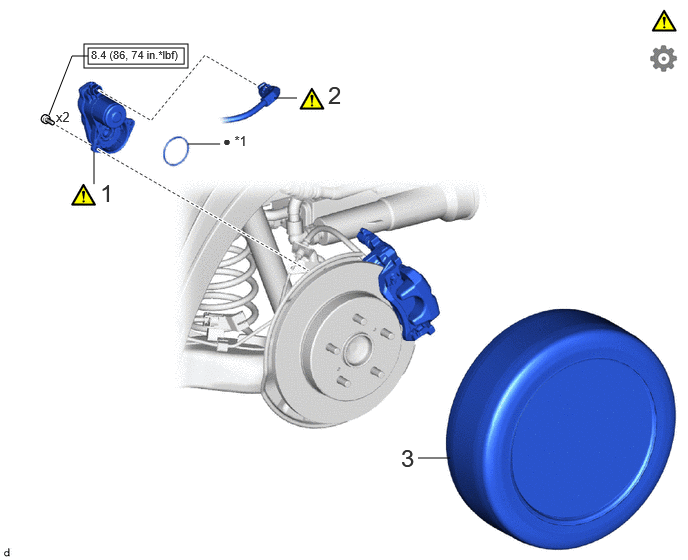

COMPONENTS (INSTALLATION)
C473521N02
0.917,0.5 1.917,0.667 1,0.167 0.875,0.458 1.958,0.708 1.083,0.25 1.958,1.5 2.292,1.5 false 0.979,1.583 0.979,1.917 false 2.854,1.021 3.094,1.021 false 0.51,1.198 0.75,0.583 0.75,0.583 0.917,0.583 false 4.354,4.771 4.688,4.771 false 2.323,1.385 2.698,1.625 0.375,0.24 10 false ● *1 1.042,1.865 1.323,2.219 0.281,0.354 18 false 1 3.417,0.844 3.698,1.198 0.281,0.354 18 false 2 0.583,1.135 0.896,1.333 0.313,0.198 10 false x2 0.948,0.5 1.896,0.646 0.948,0.146 8 false 8.4 (86, 74 in.*lbf) 4.177,4.625 4.458,4.979 0.281,0.354 18 false 3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 PARKING BRAKE ACTUATOR ASSEMBLY 46310B (Click here) - -
2 NO. 2 PARKING BRAKE WIRE ASSEMBLY 890C0A (Click here) - -
3 REAR WHEEL - - - -

*1 O-ring - -
V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) ● Non-reusable part
V100135

Lithium soap base glycol grease - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 46310B 1.INSTALL PARKING BRAKE ACTUATOR ASSEMBLY

a.
C449883N02
0.417,0.094 0.875,0.417 0.458,0.323 18 true i, ii 3.896,0.094 4.354,0.417 0.458,0.323 18 false iii

i.

Apply a light coat of lithium soap base glycol grease to a new O-ring.


ii.

Install the O-ring to the rear disc brake cylinder assembly.

NOTICE:

Make sure to replace the O-ring with a new one when installing the parking brake actuator assembly.



iii.

Using a 5 mm hexagon socket wrench, install the parking brake actuator assembly to the rear disc brake cylinder assembly with the 2 bolts.

Torque:
8.4 N*m (86 kgf*cm, 74 in.*lbf)



Hide 890C0A 2.CONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

Z101186

NOTICE:
·

Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this work.

·

Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.
