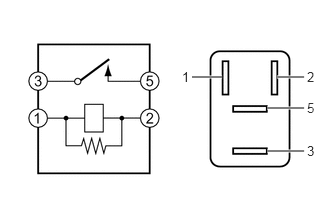

HORN  RELAY  ON-VEHICLE INSPECTION

2,0.802 2.313,0.802 true 2.885,0.802 3.167,0.802 true 2.781,1.125 3.167,1.125 true 2.781,1.573 3.167,1.573 true 1.896,0.719 2.063,0.885 0.167,0.167 10 false 1 3.198,0.719 3.365,0.885 0.167,0.167 10 false 2 3.198,1.042 3.365,1.208 0.167,0.167 10 false 5 3.198,1.49 3.365,1.656 0.167,0.167 10 false 3

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
3 - 5	Auxiliary battery voltage not applied between terminals 1 and 2	10 kΩ or higher
3 - 5	Auxiliary battery voltage applied between terminals 1 and 2	Below 1 Ω

If the result is not as specified, replace the horn relay assembly.
