HORN  HORN  INSPECTION

1.271,1.208 1.74,1.417 0.469,0.208 2.042,1.979 1.948,1.656 false 2.563,0.344 2.208,0.479 true 0.135,0.135 0.448,0.292 0.313,0.156 10 false *a 2.635,0.271 2.948,0.427 0.313,0.156 10 false *b 2.021,2 2.333,2.156 0.313,0.156 10 false 1 1.427,1.229 1.74,1.427 0.313,0.198 10 false A2

*a	Component without harness connected (Low Pitched Horn Assembly)
*b	Horn Stay

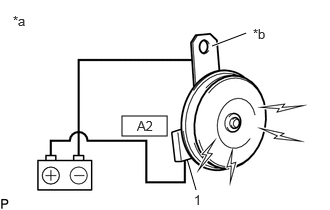

Apply auxiliary battery voltage and check the operation of the low pitched horn assembly according to the table below.

OK:

Condition	Specified Condition
Auxiliary battery positive (+) - A2-1 Auxiliary battery negative (-) → Horn stay	Low pitched horn assembly sounds

If the result is not as specified, replace the low pitched horn assembly.
