INNER REAR VIEW MIRROR(w/ EC Mirror)
A
MIRROR (INT) INNER REAR VIEW MIRROR(w/ EC Mirror) INSTALLATION
CAUTION / NOTICE / HINT

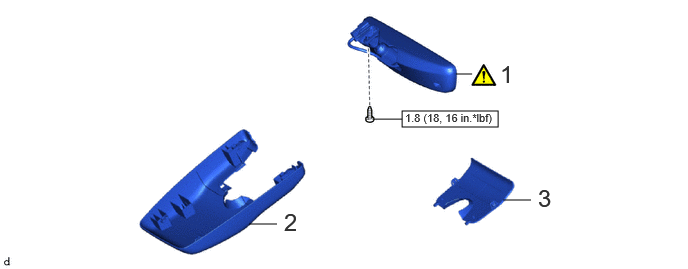

COMPONENTS (INSTALLATION)
4.188,1.156 5.188,1.323
1,0.167
4.75,0.771 4.917,0.771
false
5.24,2.083 5.531,2.083
false
2.594,2.333 2.885,2.333
false
3.896,1.24 4.188,1.24
false
5.208,0.625 5.76,0.979
0.552,0.354
18
false
1
5.604,1.917 6.156,2.271
0.552,0.354
18
false
3
2.958,2.167 3.51,2.521
0.552,0.354
18
false
2
4.219,1.156 6.667,1.313
2.448,0.156
8
false
1.8 (18, 16 in.*lbf)
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | INNER REAR VIEW MIRROR ASSEMBLY | 87810 | ( 202201,999999,_58,_115106,_0510345,RM100000002092K_01_0014,)
|
- | - |
| 2 | NO. 1 FORWARD RECOGNITION COVER | 86466D | - | - | - |
| 3 | NO. 2 FORWARD RECOGNITION COVER | 86466E | - | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
PROCEDURE
87810

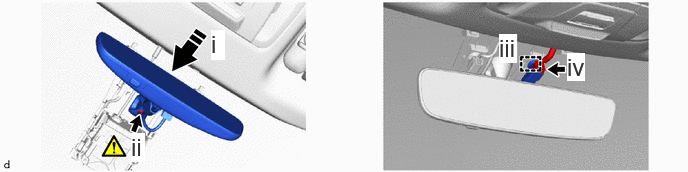

1.INSTALL INNER REAR VIEW MIRROR ASSEMBLY
a.
2.198,0.313 2.344,0.625
0.146,0.313
18
true
i
1.365,1.385 1.51,1.688
0.146,0.302
18
true
ii
5.198,0.354 5.385,0.656
0.188,0.302
18
true
iii
5.906,0.552 6.094,0.844
0.188,0.292
18
true
iv
|
Install in this Direction | - | - |
i.
Install the inner rear view mirror assembly as shown in the illustration.
ii.
Using a T20 "TORX" socket wrench, install the screw.
- Torque:
- 1.8 N*m (18 kgf*cm, 16 in.*lbf)
iii.
Engage the clamp.
iv.
Connect the connector.
86466D
2.INSTALL NO. 1 FORWARD RECOGNITION COVER
86466E
3.INSTALL NO. 2 FORWARD RECOGNITION COVER
