Vehicle Interior
_115106
MIRROR (INT)
_0510345
INNER REAR VIEW MIRROR(w/ EC Mirror)
G
MIRROR (INT) INNER REAR VIEW MIRROR(w/ EC Mirror) INSPECTION
PROCEDURE
87810
1.INSPECT INNER REAR VIEW MIRROR ASSEMBLY
a.
Inspect the operation of the inner rear view mirror assembly.
2.031,0.042 2.365,0.229
0.333,0.188
5.604,1.24 5.281,0.896
true
3.375,2.323 3.615,2.229
false
2.313,0.427 1.979,0.625
true
1.875,0.656 2.427,0.854
true
5.271,1.552 4.948,1.208
false
5.313,1.458 5.625,1.615
0.313,0.156
10
false
*a
5.646,1.135 5.958,1.292
0.313,0.156
10
false
*b
3.854,2.313 4.167,2.469
0.313,0.156
10
false
*c
5.802,2.313 6.115,2.469
0.313,0.156
10
false
*d
0.24,1.135 0.552,1.292
0.313,0.156
10
false
*e
3.229,2.25 3.542,2.406
0.313,0.156
10
false
*f
2.365,0.333 2.563,0.5
0.198,0.167
10
false
IG
2.479,0.75 2.677,0.917
0.198,0.167
10
false
E
1.094,0.24 1.302,0.469
0.208,0.229
10
false
*g
2.094,0.052 2.385,0.271
0.292,0.219
10
false
T14

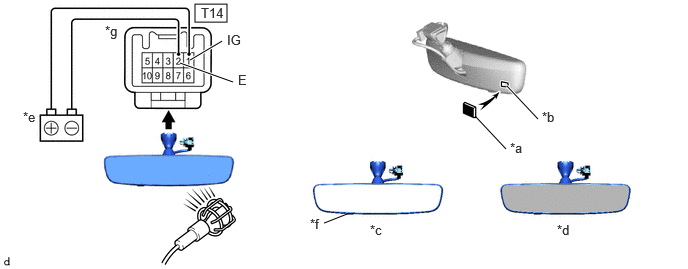

| *a | Black Colored Tape | *b | Forward Sensor |
| *c | Bright | *d | Dark |
| *e | Auxiliary Battery | *f | EC Switch |
| *g | Component without harness connected
(Inner Rear View Mirror Assembly) |
- | - |
i.
Connect a positive (+) lead from the auxiliary battery to T14-1 (IG) and a negative (-) lead to T14-2 (E).
ii.
Press the EC switch.
iii.
Install the black colored tape to the forward sensor to prevent it from sensing.
iv.
Light up the mirror with an electric light, and check that the mirror surface changes from bright to dark.
- OK:
Tester Connection Condition Specified Condition T14-1 (IG) - Auxiliary battery positive (+)
T14-2 (E) - Auxiliary battery positive (-)Light up the mirror with an electric light Inner rear view mirror surface
Bright → Dark
If the result is not as specified, replace the inner rear view mirror assembly.
