RM38T0EC _59 Vehicle Exterior _115107 WINDOW / GLASS _0510340 POWER WINDOW REGULATOR MOTOR(for Front Door) G

WINDOW / GLASS POWER WINDOW REGULATOR MOTOR(for Front Door) INSPECTION

PROCEDURE

Hide Display 85720D 1.INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

Check the operation.

1.51,1.833 1.927,2.083 0.417,0.25 1.521,1.615 1.823,1.229 true 1.271,2.417 1.583,2.49 true 1.25,2.906 1.563,2.813 true 1.854,2.5 2.177,2.427 true 2.156,2.938 1.896,2.792 true 2.771,1.667 2.479,1.563 false 2.646,1.302 3.031,1.302 false 0.698,1.927 1.01,2.083 0.313,0.156 10 false *a 1.354,1.573 1.667,1.729 0.313,0.156 10 false *b 1.646,1.865 1.958,2.021 0.313,0.156 10 false L2 1.115,2.313 1.427,2.469 0.313,0.156 10 false B 1.01,2.833 1.323,2.99 0.313,0.156 10 false UP 2.219,2.323 2.604,2.531 0.385,0.208 10 false GND 2.208,2.854 2.729,3.073 0.521,0.219 10 false DOWN 2.833,1.594 3.146,1.792 0.313,0.198 10 false *c 3.073,1.198 3.385,1.396 0.313,0.198 10 false *d

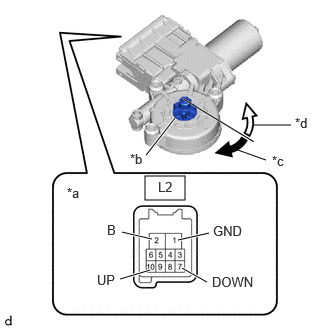

*a	Component without harness connected (Power Window Regulator Motor Assembly LH)
*b	Motor Gear
*c	Clockwise
*d	Counterclockwise

Connect a positive (+) lead from the auxiliary battery to connector terminal L2-2 (B).

NOTICE:: Do not connect a positive (+) lead from the auxiliary battery to any terminal other than terminal L2-2 (B) to avoid damaging the pulse sensor inside the motor.

ii.

Connect a negative (-) lead from the auxiliary battery to connector terminals L2-1 (GND) and L2-7 (DOWN) or L2-10 (UP).

iii.

Check that the motor gear rotates smoothly as follows:

OK:

Measurement Condition	Specified Condition
1. Connect a positive (+) lead from the auxiliary battery to terminal L2-2 (B), connect a negative (-) lead from the auxiliary battery to terminal L2-1 (GND), and keep them connected for 3 seconds or more. 2. With terminals L2-2 (B) and L2-1 (GND) connected, connect a negative (-) lead from the auxiliary battery to terminal L2-10 (UP).	Motor gear rotates clockwise
1. Connect a positive (+) lead from the auxiliary battery to terminal L2-2 (B), connect a negative (-) lead from the auxiliary battery to terminal L2-1 (GND), and keep them connected for 3 seconds or more. 2. With terminals L2-2 (B) and L2-1 (GND) connected, connect a negative (-) lead from the auxiliary battery to terminal L2-7 (DOWN).	Motor gear rotates counterclockwise

If the result is not as specified, replace the power window regulator motor assembly LH.

CAUTION:: Initialize the power window control system after installing the front door window regulator assembly.

Hide Display 85720D 2.INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

Check the operation.

1.51,1.833 1.927,2.083 0.417,0.25 1.823,1.635 1.583,1.208 true 1.26,2.406 1.573,2.479 true 1.24,2.906 1.552,2.813 true 1.854,2.5 2.177,2.427 true 2.146,2.938 1.885,2.792 true 0.438,1.323 0.781,1.323 false 0.531,1.698 0.885,1.521 false 0.698,1.927 1.01,2.083 0.313,0.156 10 false *a 1.854,1.583 2.167,1.74 0.313,0.156 10 false *b 1.646,1.885 1.958,2.042 0.313,0.156 10 false K2 1.104,2.313 1.417,2.469 0.313,0.156 10 false B 0.979,2.823 1.292,2.979 0.313,0.156 10 false UP 2.219,2.323 2.604,2.531 0.385,0.208 10 false GND 2.177,2.854 2.698,3.073 0.521,0.219 10 false DOWN 0.25,1.229 0.563,1.427 0.313,0.198 10 false *c 0.333,1.635 0.646,1.833 0.313,0.198 10 false *d

*a	Component without harness connected (Power Window Regulator Motor Assembly RH)
*b	Motor Gear
*c	Clockwise
*d	Counterclockwise

Connect a positive (+) lead from the auxiliary battery to connector terminal K2-2 (B).

NOTICE:: Do not connect a positive (+) lead from the auxiliary battery to any terminal other than terminal K2-2 (B) to avoid damaging the pulse sensor inside the motor.

ii.

Connect a negative (-) lead from the auxiliary battery to connector terminals K2-1 (GND) and K2-7 (DOWN) or K2-10 (UP).

iii.

Check that the motor gear rotates smoothly as follows:

OK:

Measurement Condition	Specified Condition
1. Connect a positive (+) lead from the auxiliary battery to terminal K2-2 (B), connect a negative (-) lead from the auxiliary battery to terminal K2-1 (GND), and keep them connected for 3 seconds or more. 2. With terminals K2-2 (B) and K2-1 (GND) connected, connect a negative (-) lead from the auxiliary battery to terminal K2-10 (UP).	Motor gear rotates counterclockwise
1. Connect a positive (+) lead from the auxiliary battery to terminal K2-2 (B), connect a negative (-) lead from the auxiliary battery to terminal K2-1 (GND), and keep them connected for 3 seconds or more. 2. With terminals K2-2 (B) and K2-1 (GND) connected, connect a negative (-) lead from the auxiliary battery to terminal K2-7 (DOWN).	Motor gear rotates clockwise

If the result is not as specified, replace the power window regulator motor assembly RH.

CAUTION:: Initialize the power window control system after installing the front door window regulator assembly.
