WINDOW / GLASS
_0510339
REAR POWER WINDOW SWITCH
A
WINDOW / GLASS REAR POWER WINDOW SWITCH REMOVAL
CAUTION / NOTICE / HINT

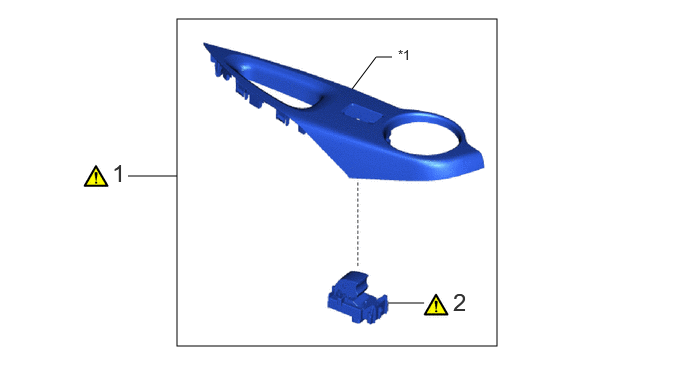

COMPONENTS (REMOVAL)
1.844,0.198 5.177,3.604
3.333,3.406
4.042,3.156 4.417,3.156
false
1.333,1.833 1.844,1.833
false
3.667,0.927 3.917,0.594
3.917,0.594 4.083,0.594
false
1.167,1.656 1.448,2.01
0.281,0.354
18
false
1
4.719,3 5,3.354
0.281,0.354
18
false
2
4.146,0.49 4.458,0.688
0.313,0.198
10
false
*1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL | - | ( 202201,999999,_59,_115107,_0510339,RM100000002091W_01_0007,)
|
- | - |
| 2 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY | 84810D | (202201,999999,_59,_115107,_0510339,RM100000002091W_01_0002,)
|
- | - |
| *1 | REAR DOOR UPPER ARMREST BASE PANEL | - | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
1.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
84810D
2.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
a.
0.396,0.052 0.677,0.406
0.281,0.354
18
false
i
i.

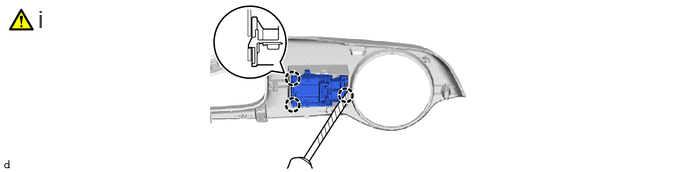

Using a screwdriver with its tip wrapped with protective tape, disengage the claws to remove the rear power window regulator switch assembly.
