WIPER / WASHER  WIPER AND WASHER SYSTEM  PARTS LOCATION

ILLUSTRATION

1.917,3.927 1.167,2.75 1.167,2.75 1,2.75 true 3.583,3.99 4.167,5.573 4.167,5.573 4.333,5.573 true 4.115,3.438 5,5.333 5,5.333 5.167,5.333 true 5.208,5.24 5.521,5.438 0.313,0.198 10 false *1 0.833,2.656 1.146,2.854 0.313,0.198 10 false *2 4.396,5.5 4.708,5.698 0.313,0.198 10 false *3

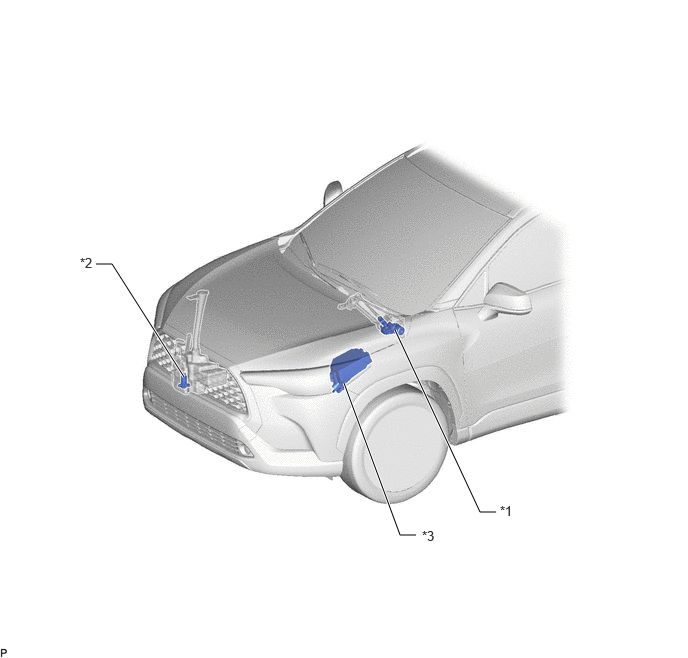

*1	WINDSHIELD WIPER MOTOR ASSEMBLY	*2	WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
*3	NO. 1 ENGINE ROOM RELAY BLOCK ASSEMBLY - WIPER FUSE - WASHER FUSE	-	-

ILLUSTRATION

4.667,2.75 5.583,1.833 5.583,1.833 5.75,1.833 true 5.813,1.771 6.885,1.969 1.073,0.198 10 false *1

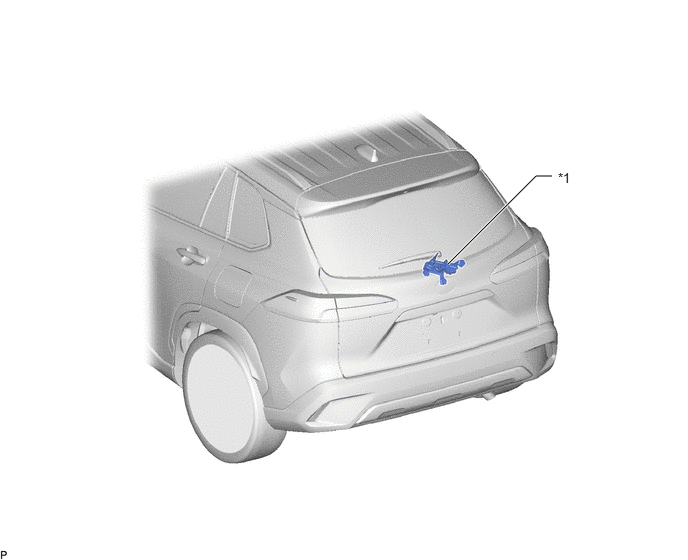

*1

REAR WIPER MOTOR ASSEMBLY

-

-

ILLUSTRATION

2.302,1.792 2.469,1.792 2.469,1.792 2.802,1.438 true 4.146,1.771 3.979,1.771 3.979,1.771 3.396,1.104 true 5.771,4.458 5.604,4.458 5.604,4.458 4.5,3.5 true 3.677,6.063 3.51,6.063 3.51,6.063 2.958,4.521 true 1.292,3.531 1.458,3.531 1.458,3.531 1.875,4.427 true 1.25,5.583 1.417,5.583 1.417,5.583 1.75,4.833 true 2.698,6.448 2.531,6.448 2.531,6.448 2.01,5.031 true 2.146,1.719 2.458,1.917 0.313,0.198 10 false *1 4.188,1.698 4.5,1.896 0.313,0.198 10 false *2 3.729,5.99 4.042,6.188 0.313,0.198 10 false *3 1.135,3.458 1.448,3.656 0.313,0.198 10 false *4 1.073,5.521 1.385,5.719 0.313,0.198 10 false *5 5.813,4.385 6.125,4.583 0.313,0.198 10 false *6 2.75,6.375 3.063,6.573 0.313,0.198 10 false *7

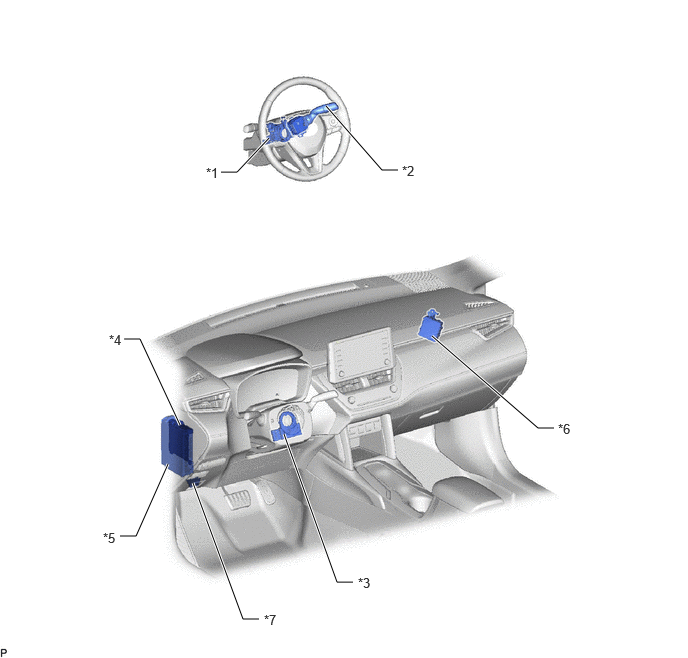

*1	STEERING WHEEL SWITCH HOUSING	*2	WINDSHIELD WIPER SWITCH ASSEMBLY
*3	STEERING SENSOR	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5	POWER DISTRIBUTION BOX ASSEMBLY - WIPER RR FUSE	*6	WINDSHIELD WIPER RELAY ASSEMBLY
*7	DLC3	-	-
