RM38T0EC _59 Vehicle Exterior _114986 SLIDING ROOF / CONVERTIBLE _0509985 SLIDING ROOF HOUSING(for Moon Roof) A

SLIDING ROOF / CONVERTIBLE  SLIDING ROOF HOUSING(for Moon Roof)  DISASSEMBLY


CAUTION / NOTICE / HINT

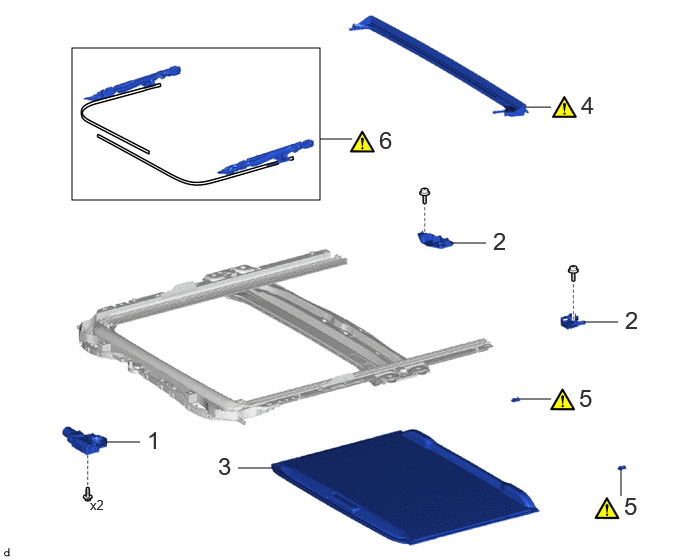

COMPONENTS (DISASSEMBLY)
B642347N01
0.75,0.5 3.333,2.083 2.583,1.583 3.333,1.448 3.667,1.448 false 5.469,1.115 5.74,1.115 false 5.406,4.156 5.74,4.156 false 6.469,4.885 6.469,5.167 false 2.479,4.875 2.833,4.875 false 4.708,2.531 5.063,2.531 false 6.083,3.354 6.438,3.354 false 1.104,4.604 1.458,4.604 false 0.938,5.177 1.25,5.375 0.313,0.198 10 false x2 3.948,1.313 4.26,1.635 0.313,0.323 18 false 6 6.031,4 6.344,4.323 0.313,0.323 18 false 5 6.052,0.948 6.365,1.271 0.313,0.323 18 false 4 5.135,2.365 5.448,2.688 0.313,0.323 18 false 2 6.51,3.188 6.823,3.51 0.313,0.323 18 false 2 2.271,4.708 2.583,5.031 0.313,0.323 18 false 3 1.531,4.438 1.844,4.76 0.313,0.323 18 false 1 6.5,5.125 6.74,5.479 0.24,0.354 18 false 5

Procedure Part Name Code
Z101186

Z101188

Z101187

1 SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY 63260K - - -
2 SLIDING ROOF PIECE SUB-ASSEMBLY - - - -
3 SUNSHADE TRIM SUB-ASSEMBLY 63306 - - -
4 REAR ROOF DRIP CHANNEL - (Click here) - -
5 REAR NO. 1 SLIDING ROOF SUNSHADE STOPPER - (Click here) - -
6 SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY 63205A (Click here) - -

PROCEDURE

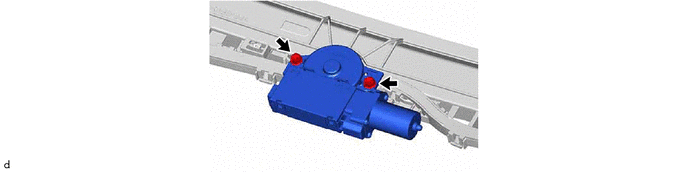

Hide 63260K 1.REMOVE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

a.
B582151

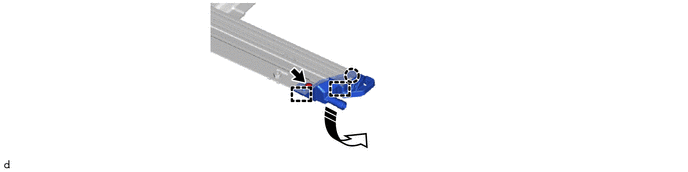

Hide 2.REMOVE SLIDING ROOF PIECE SUB-ASSEMBLY

a.
B635858C01
0,0 0,0 false
V113147

Remove in this Direction - -



b.

Use the same procedure as for the opposite side.

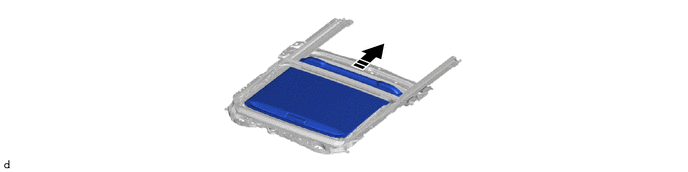

Hide 63306 3.REMOVE SUNSHADE TRIM SUB-ASSEMBLY

a.
B635859C01
0,0 0,0 false
V113147

Remove in this Direction - -

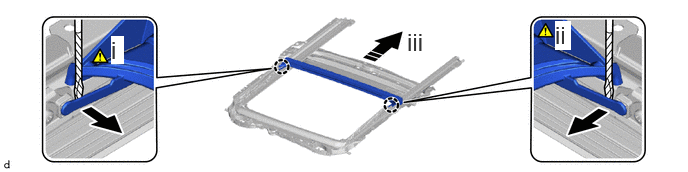

Hide 4.REMOVE REAR ROOF DRIP CHANNEL

Z101186

NOTICE:

Perform this procedure only when replacement of the sliding roof drive cable sub-assembly is necessary.



a.
B635860C01
1.156,0.375 1.292,0.667 0.135,0.292 18 true i 5.781,0.219 5.948,0.521 0.167,0.302 18 true ii 4.24,0.292 4.469,0.594 0.229,0.302 18 false iii
V113147

Remove in this Direction - -


i.

Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.


ii.

Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.


iii.

Remove the rear roof drip channel as shown in the illustration.

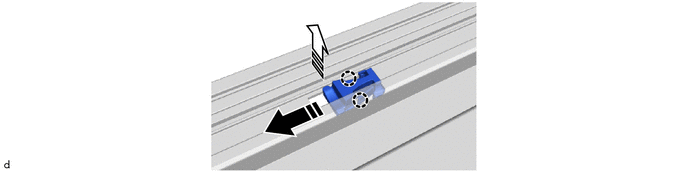

Hide 5.REMOVE REAR NO. 1 SLIDING ROOF SUNSHADE STOPPER

Z101186

NOTICE:

Perform this procedure only when replacement of the sliding roof drive cable sub-assembly is necessary.



a.
B623436C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)

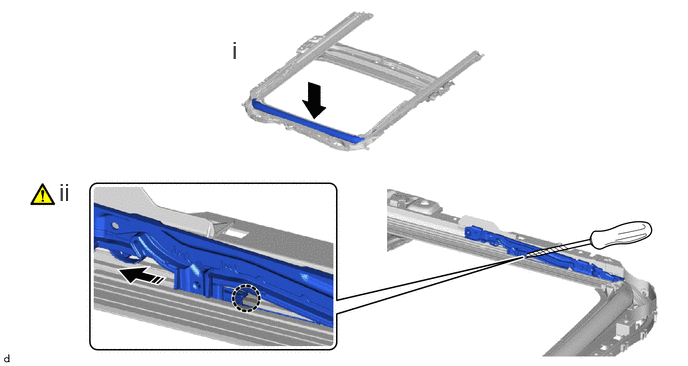

Hide 63205A 6.REMOVE SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

Z101186

NOTICE:

Perform this procedure only when replacement of the sliding roof drive cable sub-assembly is necessary.



a.
B635861C01
2.417,0.375 2.688,0.771 0.271,0.396 18 false i 0.615,1.854 0.885,2.25 0.271,0.396 18 false ii
V100135

Hold Down
V113146

Push Position
V113147

Remove in this Direction - -


i.

Hold down the roof wind deflector panel sub-assembly.


ii.

Using a screwdriver with its tip wrapped with protective tape, remove the sliding roof drive cable sub-assembly as shown in the illustration.



b.

Use the same procedure as for the opposite side.
