RM38T0EC _58 Vehicle Interior _114202 SEAT BELT _0509304 REAR CENTER SEAT OUTER BELT ASSEMBLY G

SEAT BELT  REAR CENTER SEAT OUTER BELT ASSEMBLY  INSPECTION


PROCEDURE

Hide 73350C 1.INSPECT REAR CENTER SEAT OUTER BELT ASSEMBLY

a.

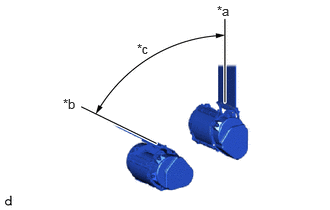

B584925C01
2.26,0.031 2.573,0.229 0.313,0.198 10 false *a 0.656,1 0.969,1.198 0.313,0.198 10 false *b 1.427,0.427 1.74,0.625 0.313,0.198 10 false *c
*a Unlock
*b Lock
*c 45°


Before installing the rear center seat outer belt assembly, check the ELR function.

NOTICE:

Do not disassemble the retractor.


i.

When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the result is not as specified, replace the rear center seat outer belt assembly.
