SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY  INSPECTION


PROCEDURE

Hide 73370E 1.INSPECT REAR SEAT BELT ASSEMBLY OUTER

a.
B625963C01

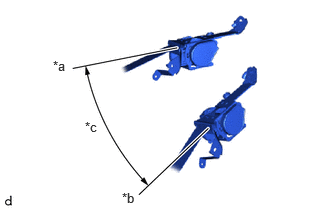

0.552,0.604 0.865,0.802 0.313,0.198 10 false *a 1.271,1.979 1.583,2.177 0.313,0.198 10 false *b 0.885,1.24 1.198,1.438 0.313,0.198 10 false *c
*a Unlock
*b Lock
*c 45°


Before installing the rear 3 point type seat outer belt assembly, check the ELR function.

NOTICE:

Do not disassemble the retractor.


i.

When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the result is not as specified, replace the rear 3 point type seat outer belt assembly.
